Kystar KP2H/KP4H Control Box Set

Price: Contact

Status: Stocking

Switch directly between online and offline mode
Four network ports load 2.35 million/1.3 million pixels
Display full screen zoom optionally
HDMI output display
Mix multiple formats multiple windows
Professional programming
Kares Cloud Release System

Buy now

Top Selling Products

Kystar Kls8Pro Image Processor

Contact

Code: Kystar KLS12

Kystar LA400 Image Processor

Contact

Code: Kystar LA400

Product Description
Review

Article content

Features of Kystar KP2H/KP4H control box
Technical specifications of Kystar KP2H/KP4H control box
Contact information to buy genuine Kystar KP2H/KP4H control box set

1. Features of Kystar KP2H/KP4H control box

Switch directly between online and offline mode

Default HDMI input priority mode and automatically switch to HDMI display when there is an external HDMI connection;

Users can switch between online and offline screens with one key on mobile phone/computer/front lever, which is convenient and fast.

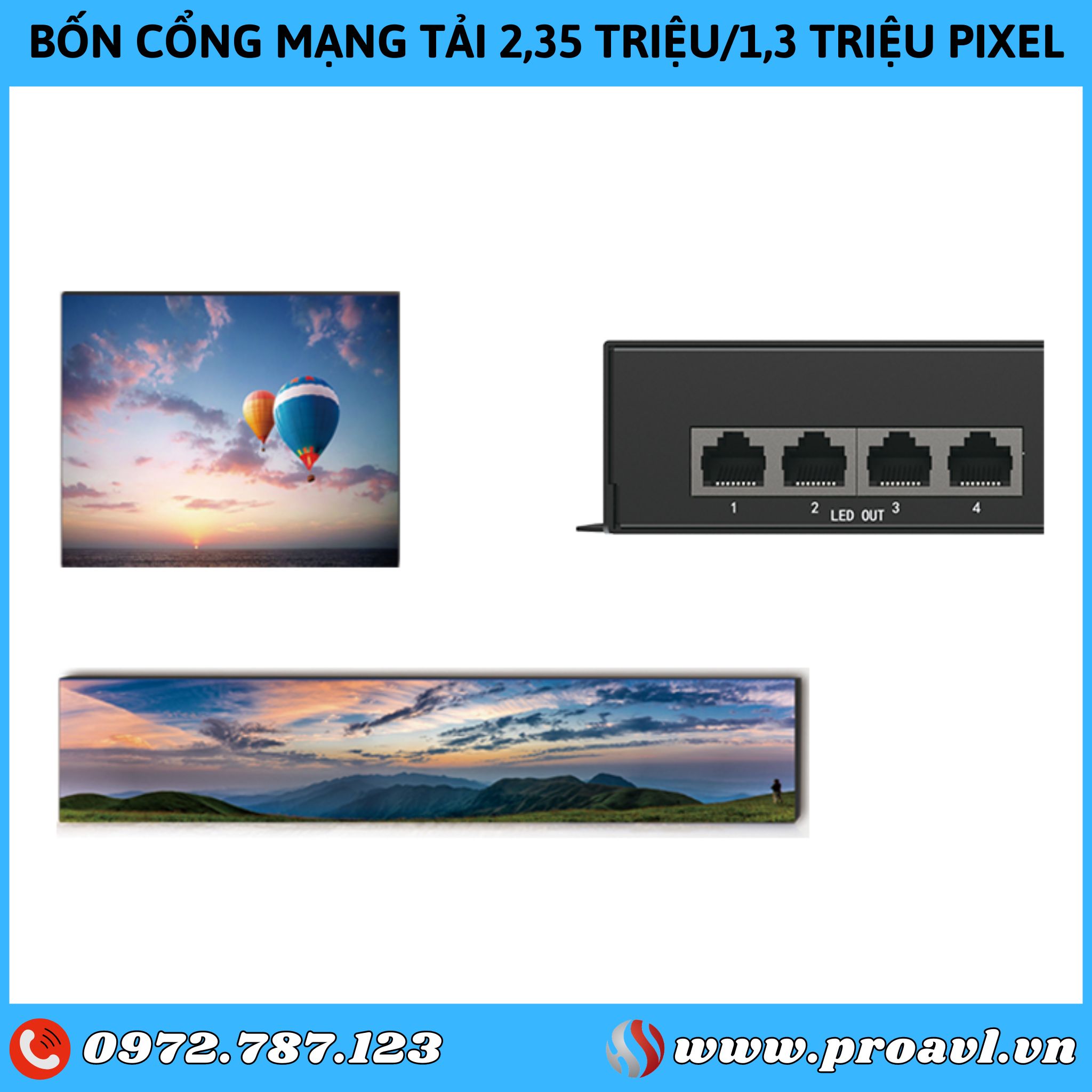

Four network ports load 2.35 million/1.3 million pixels

The KP4H&KP2H four-way network port supports up to 2.35 million pixels, maximum width 3840 pixels, maximum 2000 pixels, and supports wider and taller screens through software folding function.

Display full screen zoom optionally

KP2H & KP4H have built-in powerful video processing module, which can adjust the input signal, whether it is ultra-long screen or ultra-high screen, can be displayed on the whole screen; at the same time, the display area and position can be adjusted according to the needs, to achieve partial display and maintain the ratio.

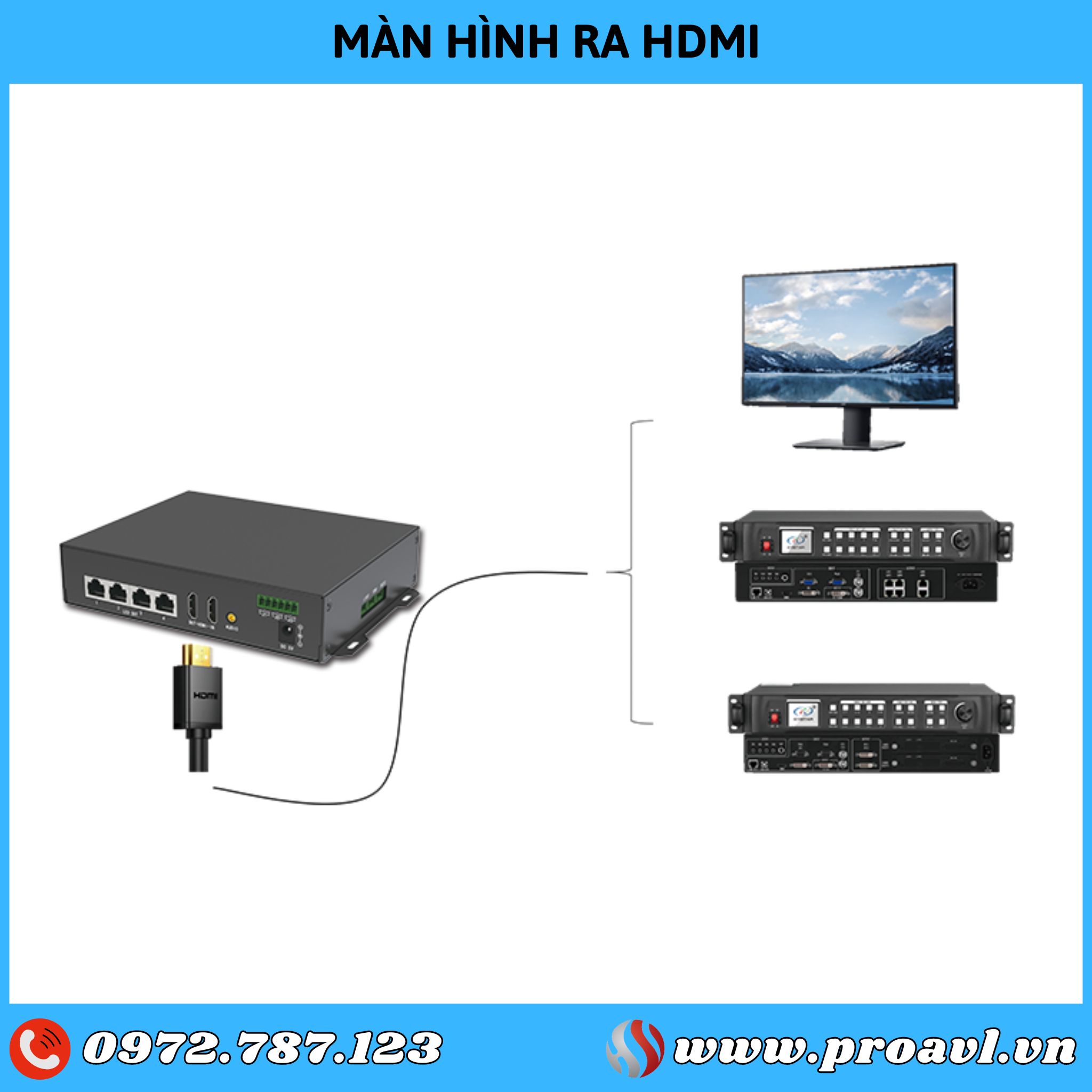

HDMI output display

KP2H & KP4H support HDMI output, can connect to multiple processors, two-in-one displays and LCD monitors.

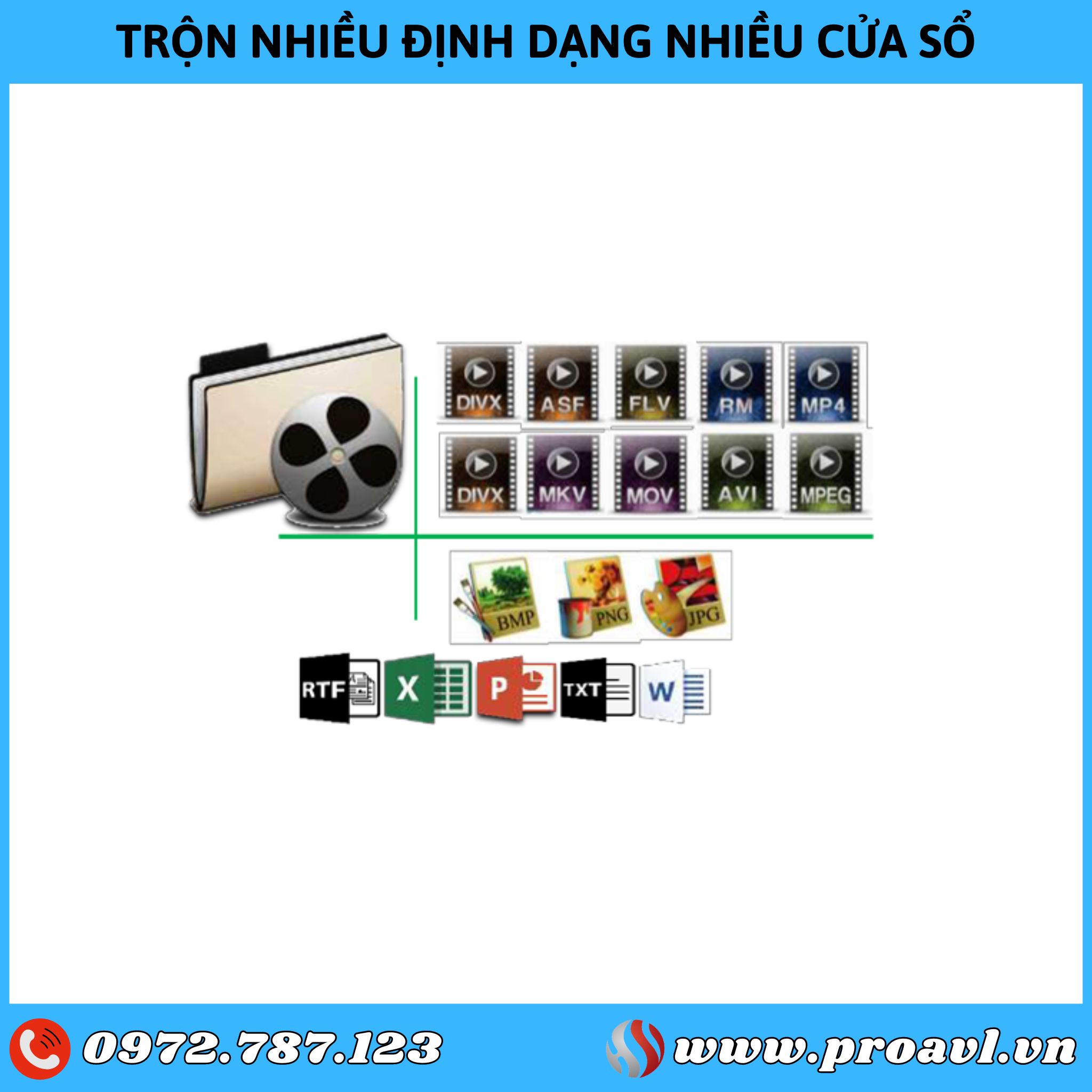

Mix multiple formats multiple windows

It has excellent multimedia playback capabilities, supporting a wide range of video, image, audio, text and colorful text formats, and a more fluent 60hz standard output.

It has powerful window opening ability and supports playing 3 1080P video windows or 5 720P video windows and more than 10 image windows at the same time.

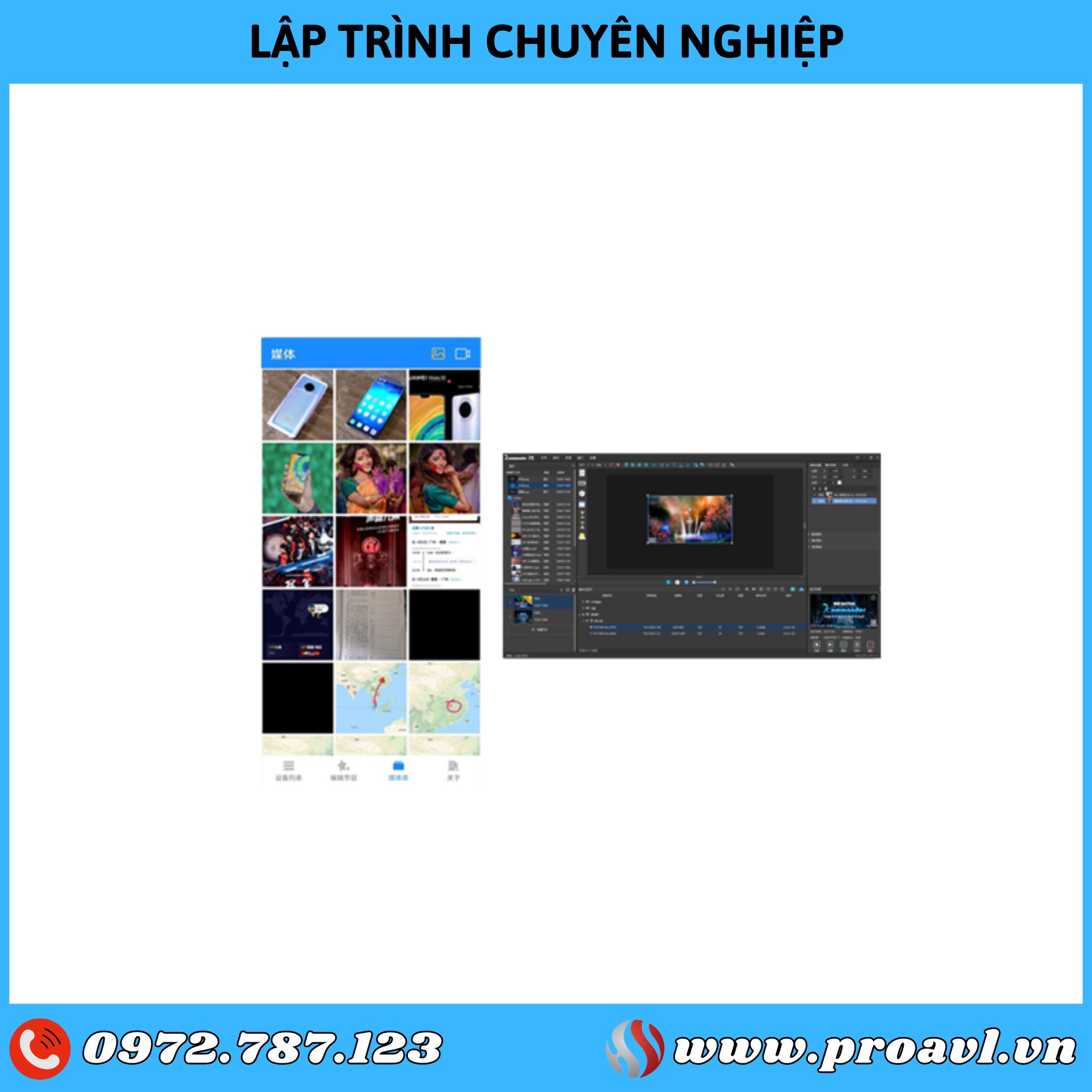

Professional programming

Program editing can be realized through Kystar PE multimedia editing management software on PC. Kystar PE has professional video optimization and program scheduling capabilities, which can meet complex playback requirements;

At the same time, you can also perform instant program editing through the mobile APP "Pandora's Box", wireless connection, convenient and fast.

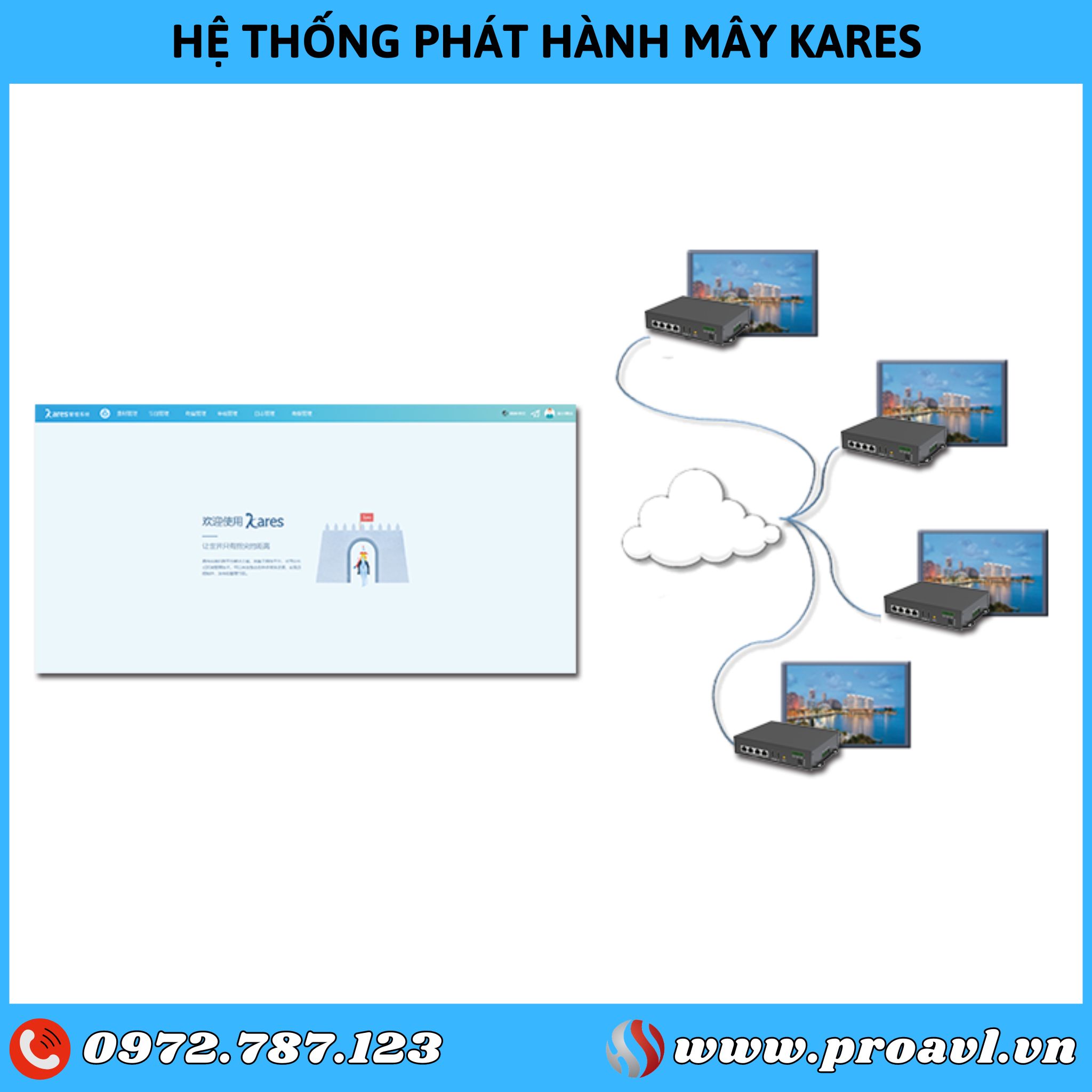

Kares Cloud Release System

Support cloud-based cluster broadcast control system. Pandora display terminals distributed in various locations can be connected to the Kares broadcast control system through the local network or the Internet to realize cluster display control of a single manager of thousands of displays.

2. Technical specifications of Kystar KP2H/KP4H control box

External interface type
Gigabit output port*1	Output signal for receiving card
Audio output port*1	1/8" (3.5mm) TRS plug output
USB2.0*2	Storage expandable (U disk or SD card, up to 128G)
100M*1 entrance	Access to LAN, cluster control
WIFI	WiFi STA+AP dual mode, can connect to router, can be used as hotspot for mobile phone, computer to connect
HDMI	HDMI input and output
LIGHT	LIGHT external brightness sensor, controls screen brightness according to ambient brightness
TEMP	External temperature and humidity sensor to get ambient temperature and humidity
Relay	Can be used to control external power switch
4G (Optional)	Internet access
GPS (Optional)	Precise positioning, precise timing, multi-screen synchronization
DC power input	Power supply DC 5V/4A
Performance parameters
Hardware performance	1.6G, Quad-core CPU, 3D GPU 1GB@600MHz DDR3 high speed Ram Support 1080p@60fps hard decode playback Support 1080p@30fps hardware encoding
ROM	8GB built-in memory (5G user-friendly)
Load	Single network port 650,000 pixels, the entire KP2H machine 1.3 million pixels (the entire KP4H machine 2.35 million pixels), maximum width 3840 pixels, maximum 2000 pixels
Wifi connection distance	20 meters (unblocked)
Supports multimedia formats
Video format	Popular video formats like AVI, WMV, MPG, RM/RMVB, VOB, MP4, FLV; Can support playback of multiple videos at the same time
Audio format	MPEG-1 Layer III, AAC
Image format	Support bmp, jpg, png
Document	Single-line text, static text, multi-line scrolling text, office
Clock	Real-time clock, multi-zone clock display and management
OSD	Support 32-bit visual color OSD, can display in any position, support video/graphics mixing, can overlay graphics on video.
Machine specifications
Size	190x139x38mm (LxWxH)
Supported cards	Kystar all series signal receiving card
Input power	Power supply DC 5V/4A
Rated power	15W
Operating temperature	-20°C -80°C
Working humidity (%)	5%-95%
