Kystar KLS12 Image Processor

1. Outstanding features of Kystar KLS12 LED image processor

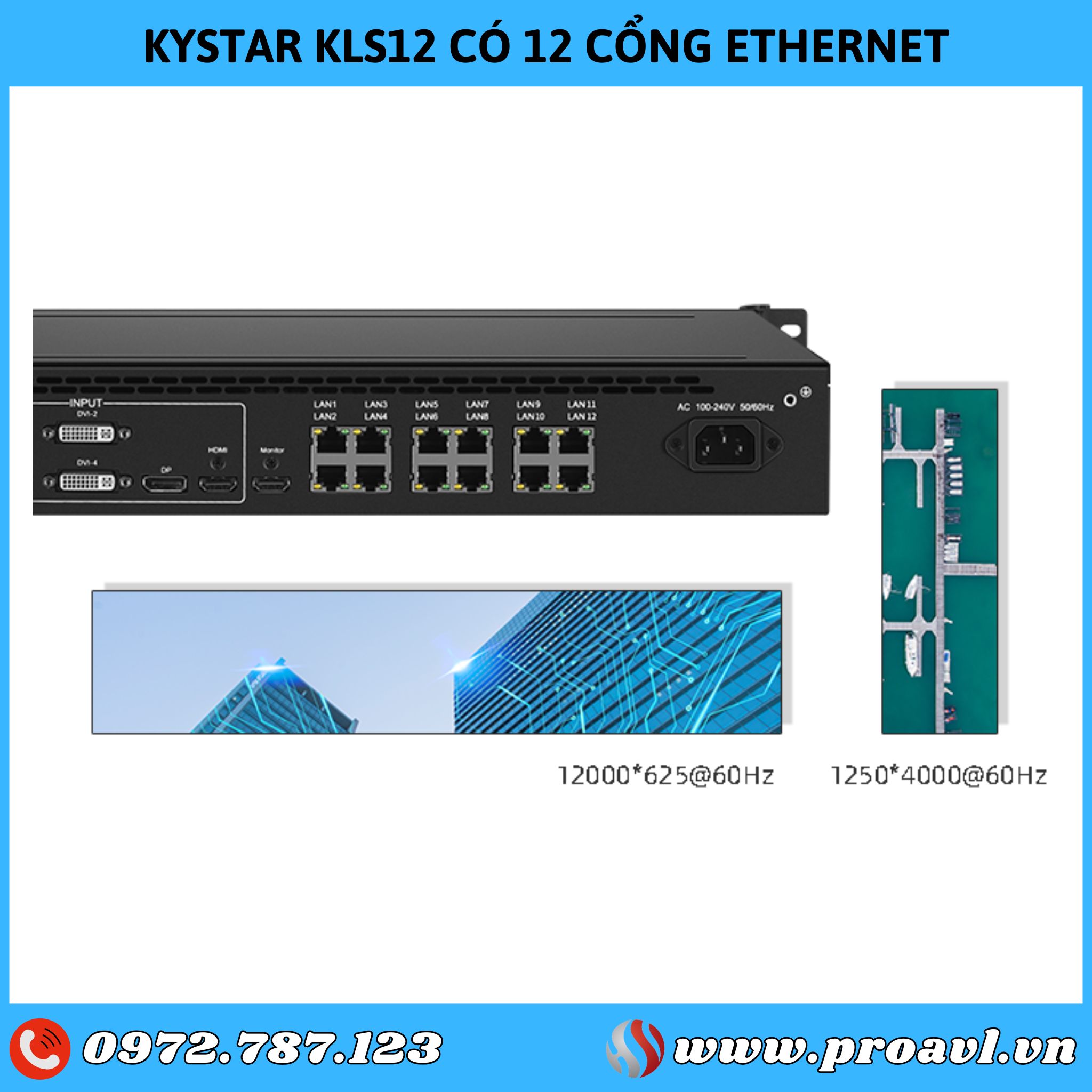

• 12 Ethernet ports

The KLS12 is equipped with 12 network output ports, supporting a maximum load of 7.8 million pixels, a maximum width of 12,000 pixels, and a maximum height of 4,000 pixels.

LED display can be controlled directly without external sending controller.

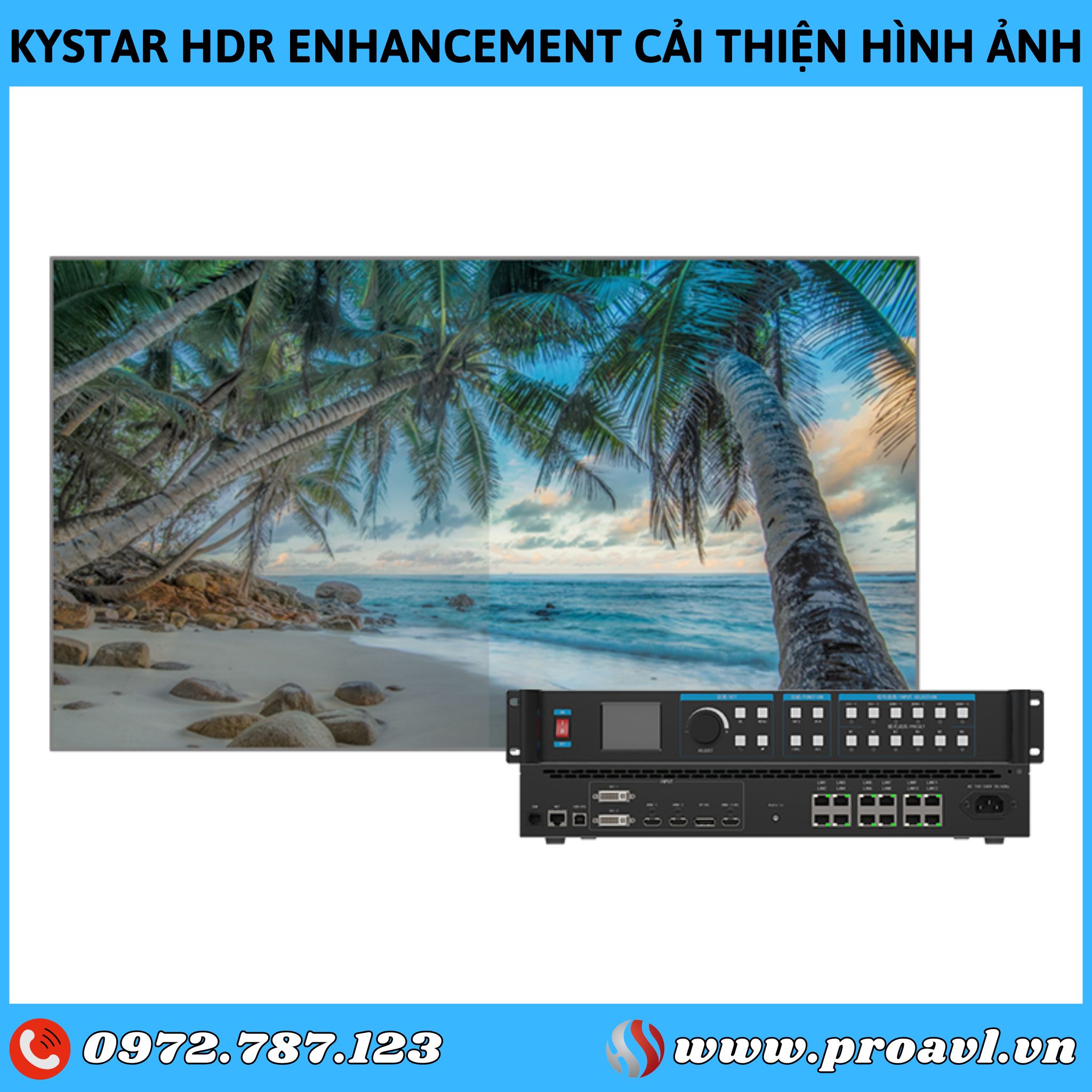

• Kystar HDR Enhancement improves images

KLS12 supports Kystar HDR Enhancement (K-HDR) technology, which can perform real-time dynamic optimization according to image content, expand the dynamic range of the image, enable conventional SDR images to achieve HDR display effects, and solve the less painful points of HDR video sources in the industry. Bring a stunning visual experience.

• Six channel video signal input

KLS12 supports six-channel HD video signal input, including DVI×4, HDMI×1, DP×2.

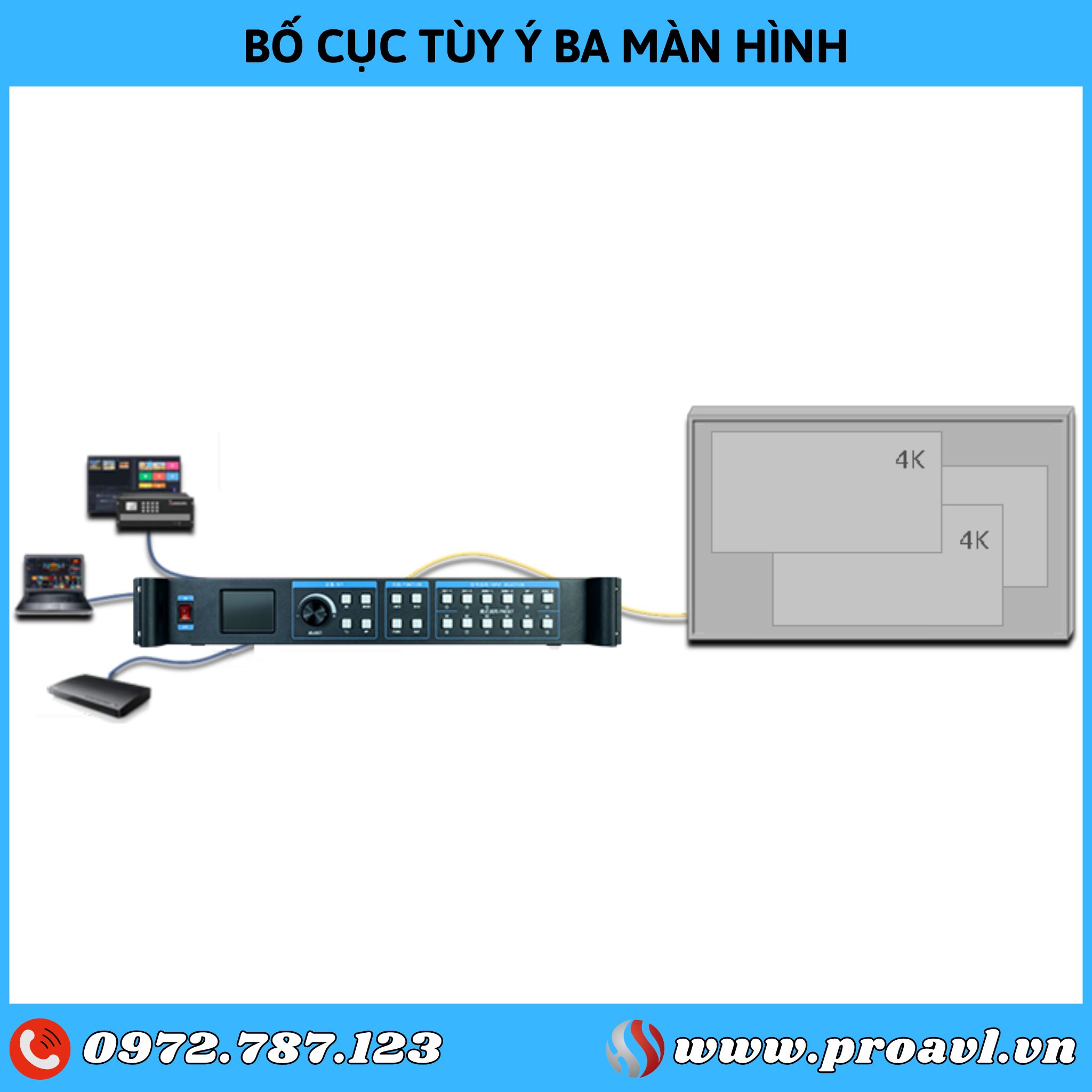

• Three screen custom layout

The KLS12 allows up to 3 signal screens to be displayed. All input signals can be displayed on the screen simultaneously.

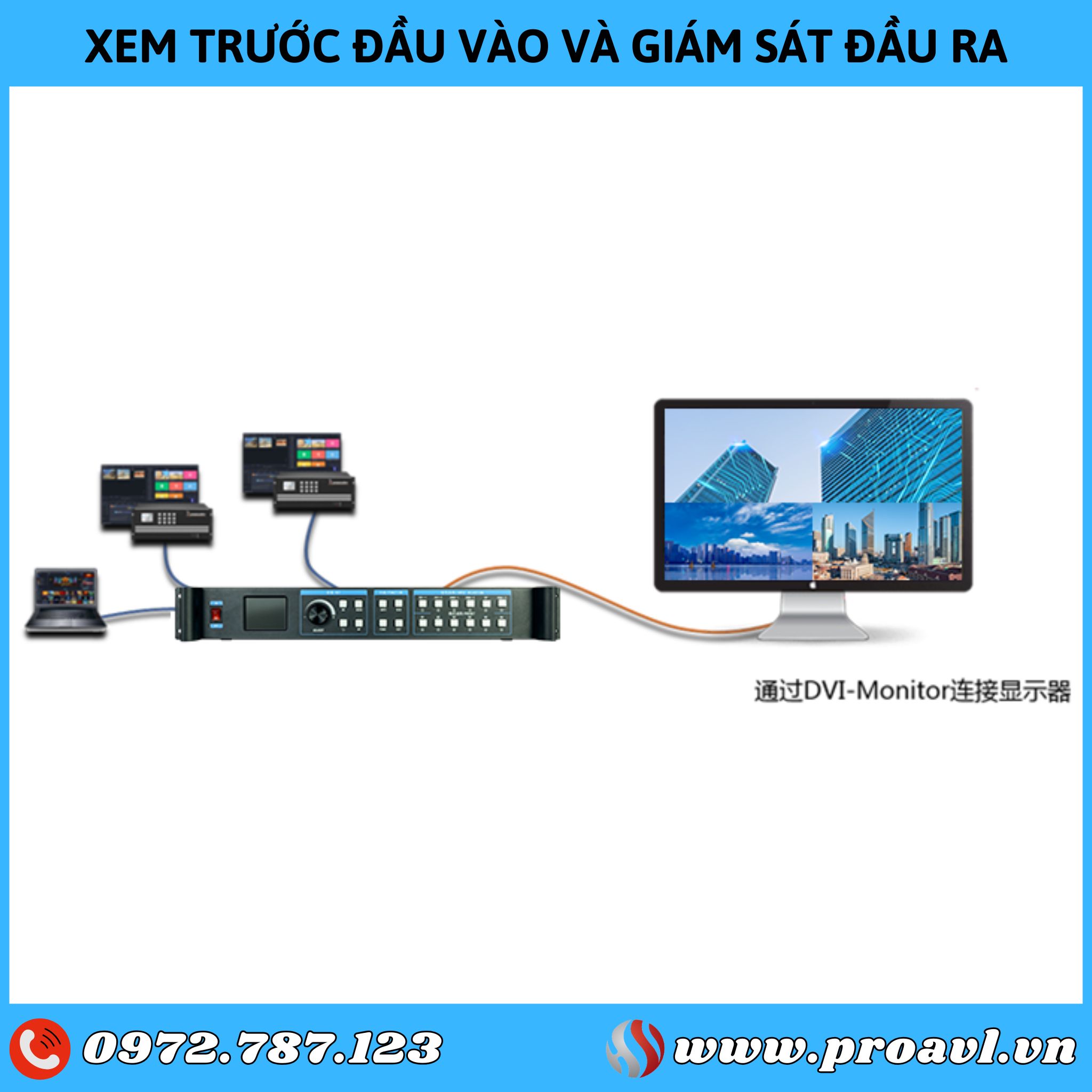

• Input preview and output monitoring

Monitor all inputs and outputs on one screen.

Connect to the monitor via the DVI-Monitor output port, you can preview all input signals and monitor the output signal screen at the same time.

• Hot spare input signal

Redundant signal assigned seamless switching

KLS12 can designate any signal as the backup signal of the current signal. When the signal fails, the backup signal will automatically switch seamlessly.

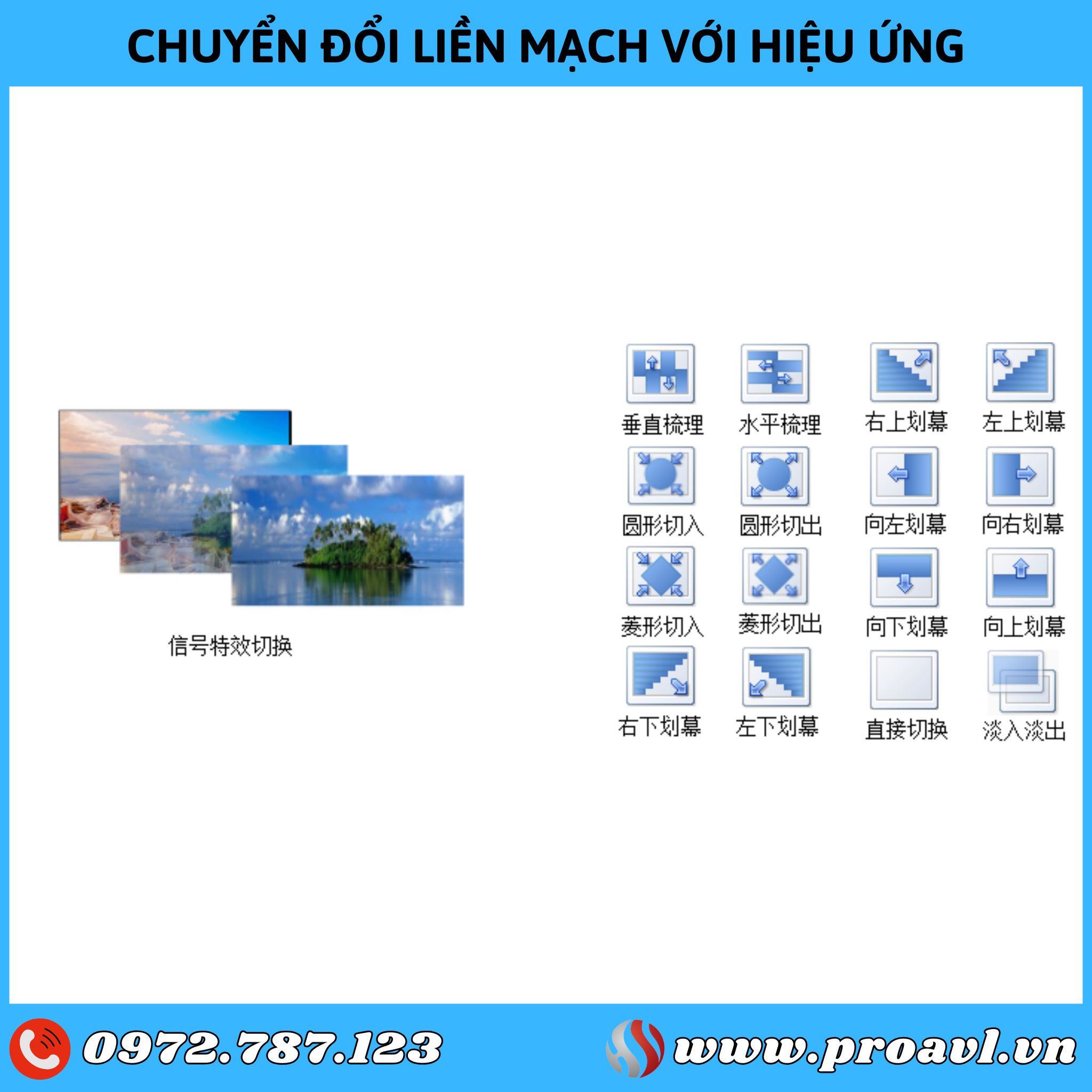

• Seamless transitions with effects

Whether it is signal or preset, KLS12 has seamless switching, without signal loss, flicker or delay during switching; Besides, KLS12 owns more than ten switching effects for users to choose from, which can adapt to various applications.

2. Outstanding features of Kystar KLS12 LED image processor

The KLS12 2-in-1 controller supports 4K@30Hz digital signal input and has 12 network port outputs. The whole machine can handle a maximum load of 7.8 million pixels. Using pure hardware FPGA architecture and can run continuously for 365×24 hours to meet the needs of small spacing. Application configuration requirements for large screen control systems.

• Features

- Single machine has 12 network ports. A single network port can carry 650,000 pixels. The whole machine can carry a maximum of 7.8 million pixels. The width can reach 12,000 points and the height can reach 4,000 points.

- Supports multiple digital signal interfaces, including 1 DP1.1, 1 HDMI1.4, 2 HDMI1.3 and 2 DVI-D input sources.

- Supports displaying 3 images, with arbitrary layout of image positions.

- All layers support clipping and transparency adjustment for best effect.

- Supports multiple special effects when switching between different signals, including fade in and out, swipe up, down, left and right, diagonal swipe up and down, circular cut in and cut out, diamond cut in and cut out, and comb transition.

- Support hot backup of signal source.

- EDID configuration management: supports reading, modifying and customizing EDID (Extended Display Identification Data).

- Support one-click freeze/black screen function.

- Black border cut/remove function: Solves the black border problem caused by terminal signals and performs arbitrary cutting for any signal source (still maintaining full screen state)

- Support key lock to avoid wrong operation.

- The brightness and contrast of the overall output display can be adjusted in real time and quickly.

- K-HDR function supports SDR to HDR image optimization technology, which can improve the contrast of ordinary SDR video, enhance image details, and make ordinary video have HDR effect.
