Kystar KLS6 Image Processor

Price: Contact

Code: Kystar KLS6

Status: Stocking

Input power: 100-240VAC 50/60Hz 0.6A
Operating temperature: 0-45℃
Dimensions: 483×270.5×73mm (L×W×H)
Net weight: 4kg
Total machine power: 60W

Buy now

Top Selling Products

Kystar EX Series Image Dispersion Processor

Contact

Kystar Kls8Pro Image Processor

Contact

Code: Kystar KLS12

Kystar LA400 Image Processor

Contact

Code: Kystar LA400

Product Description
Review

Article content

Outstanding features of Kystar KLS6 LED image processor
Outstanding features of Kystar KLS6 LED image processor
Contact to buy Kystar KLS6 LED image processor

1. Outstanding features of Kystar KLS6 LED image processor

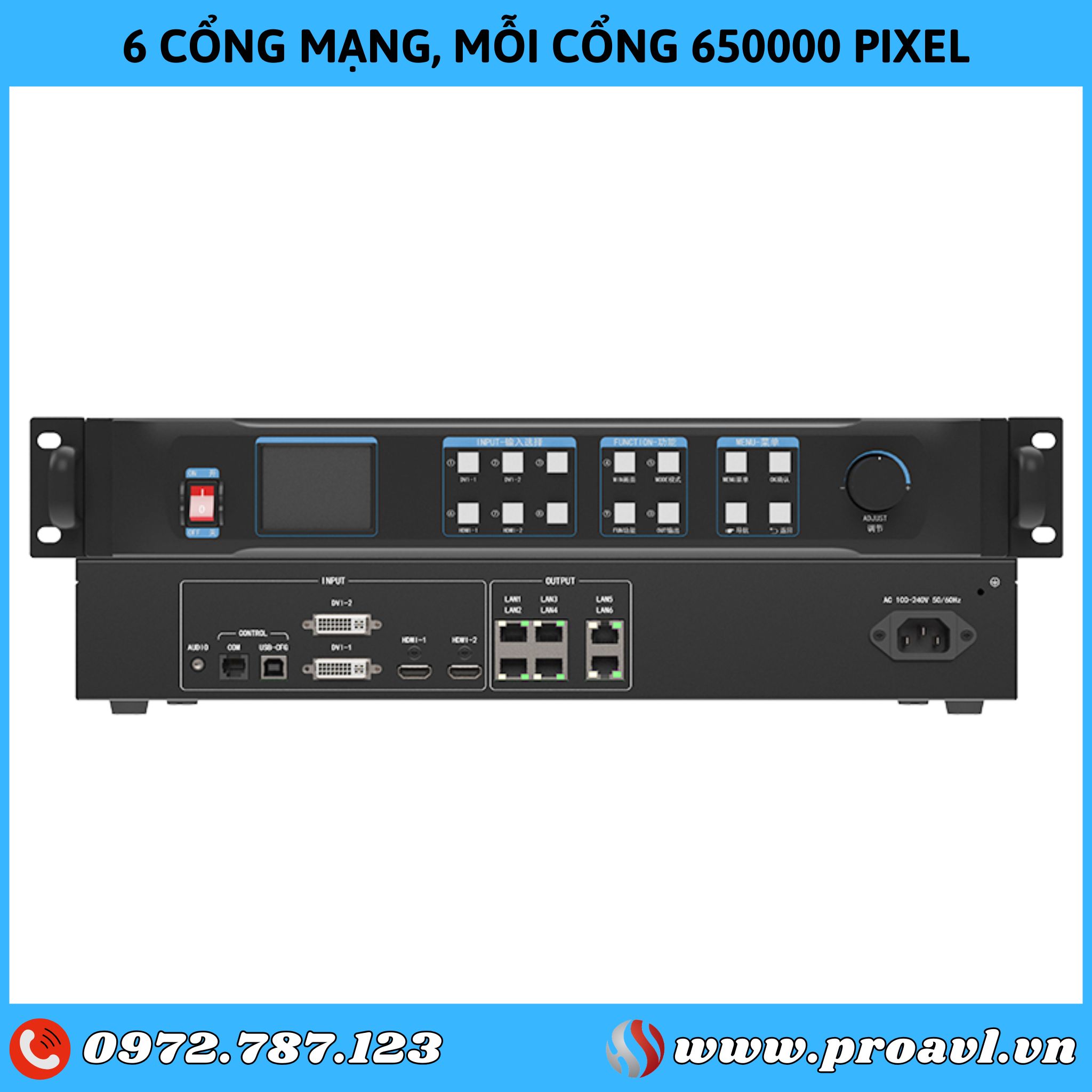

6 network ports, with a single network port carrying 650000 pixels

One machine has 6 network ports, one network port can carry 650000 pixels. The maximum carrying capacity of the whole machine is 3.9 million pixels, width up to 8000 pixels, height up to 4000 pixels.

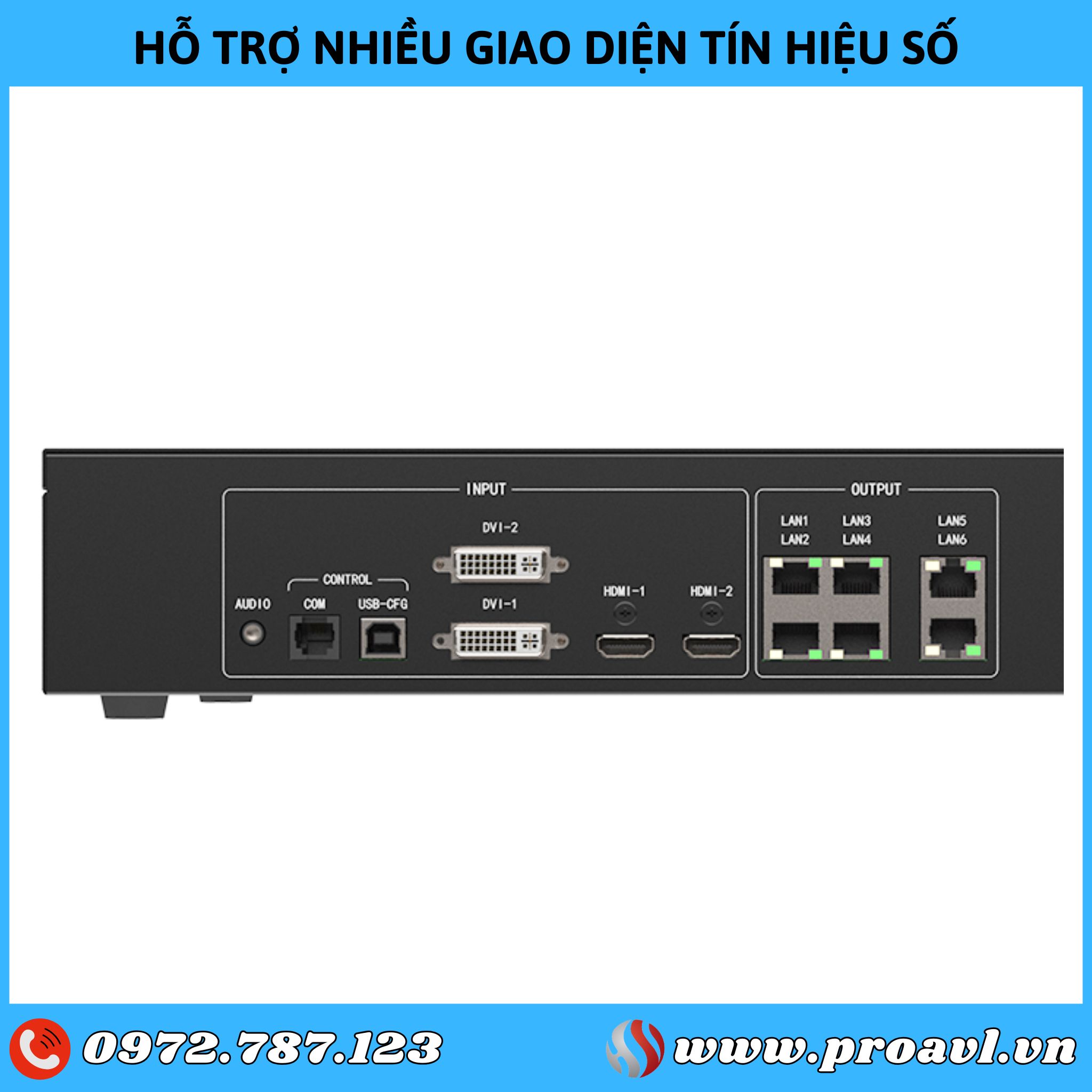

Support multiple digital signal interfaces

Support multiple digital signal interfaces, including 2-way HDMI1.3 input source and 2-way DVI-D input source.

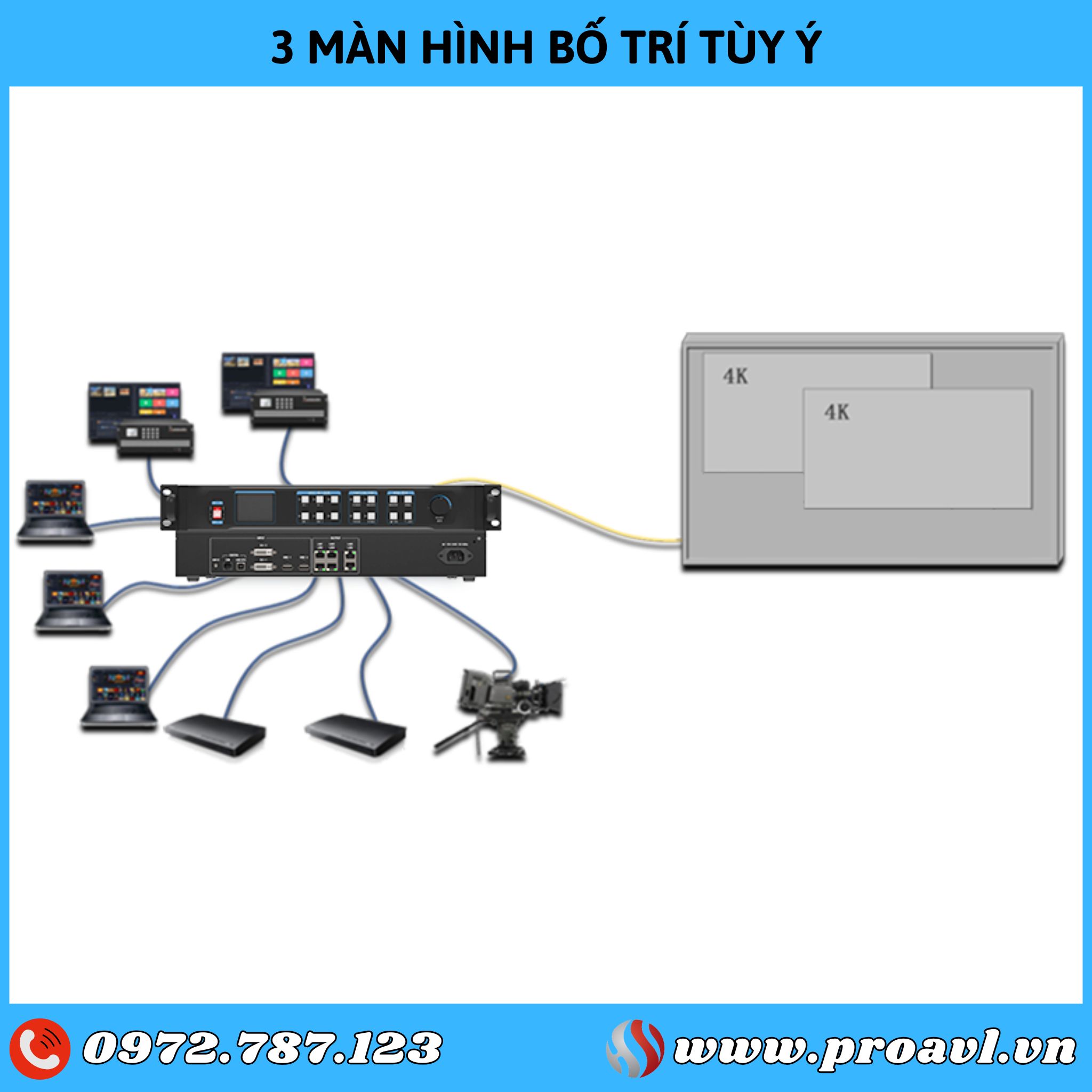

3 screens with custom layout

Supports 3 screen display, with arbitrary screen position layout.

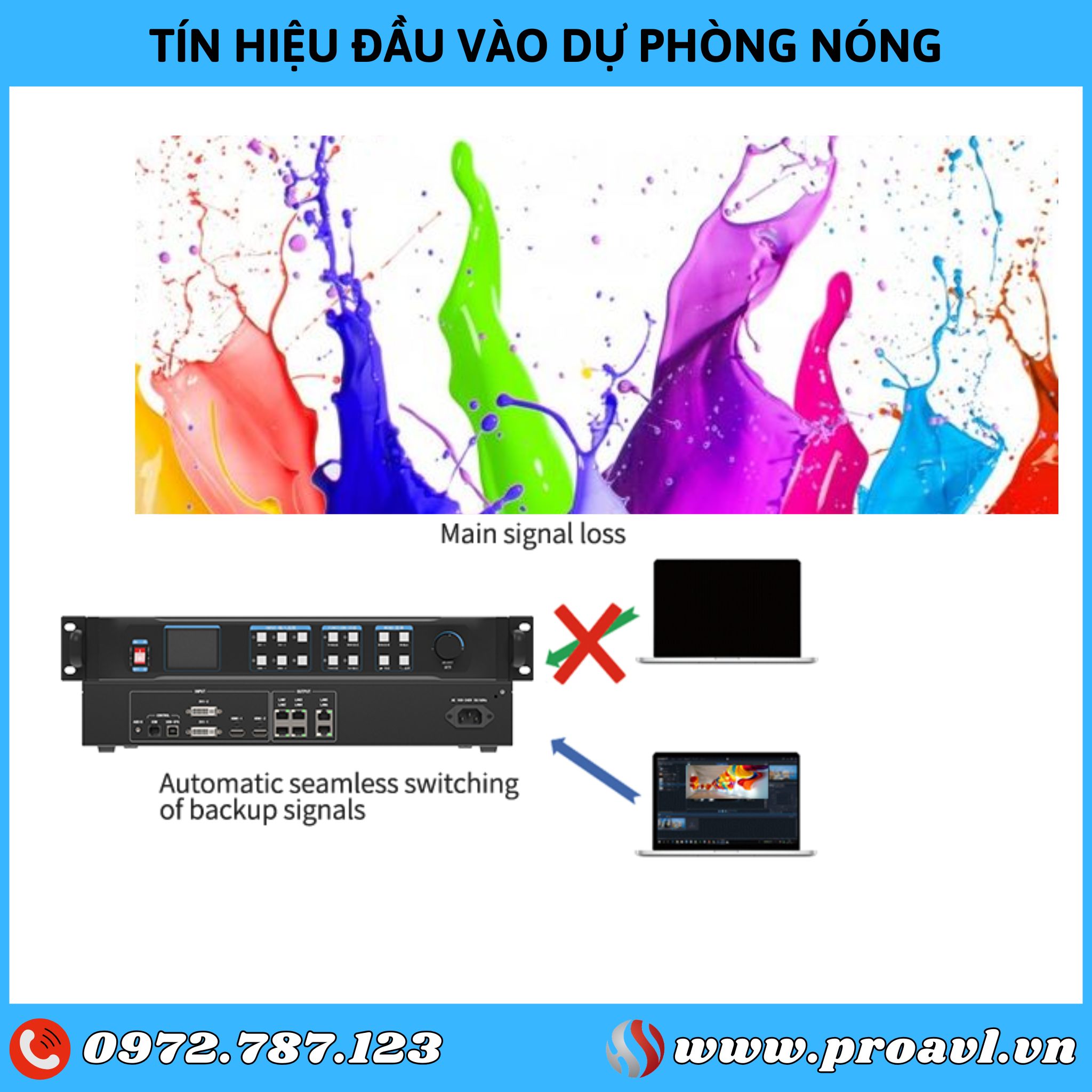

Hot spare input signal

Any signal source can be designated as a backup source for the current signal. When the signal fails, the backup signal will be automatically switched seamlessly.

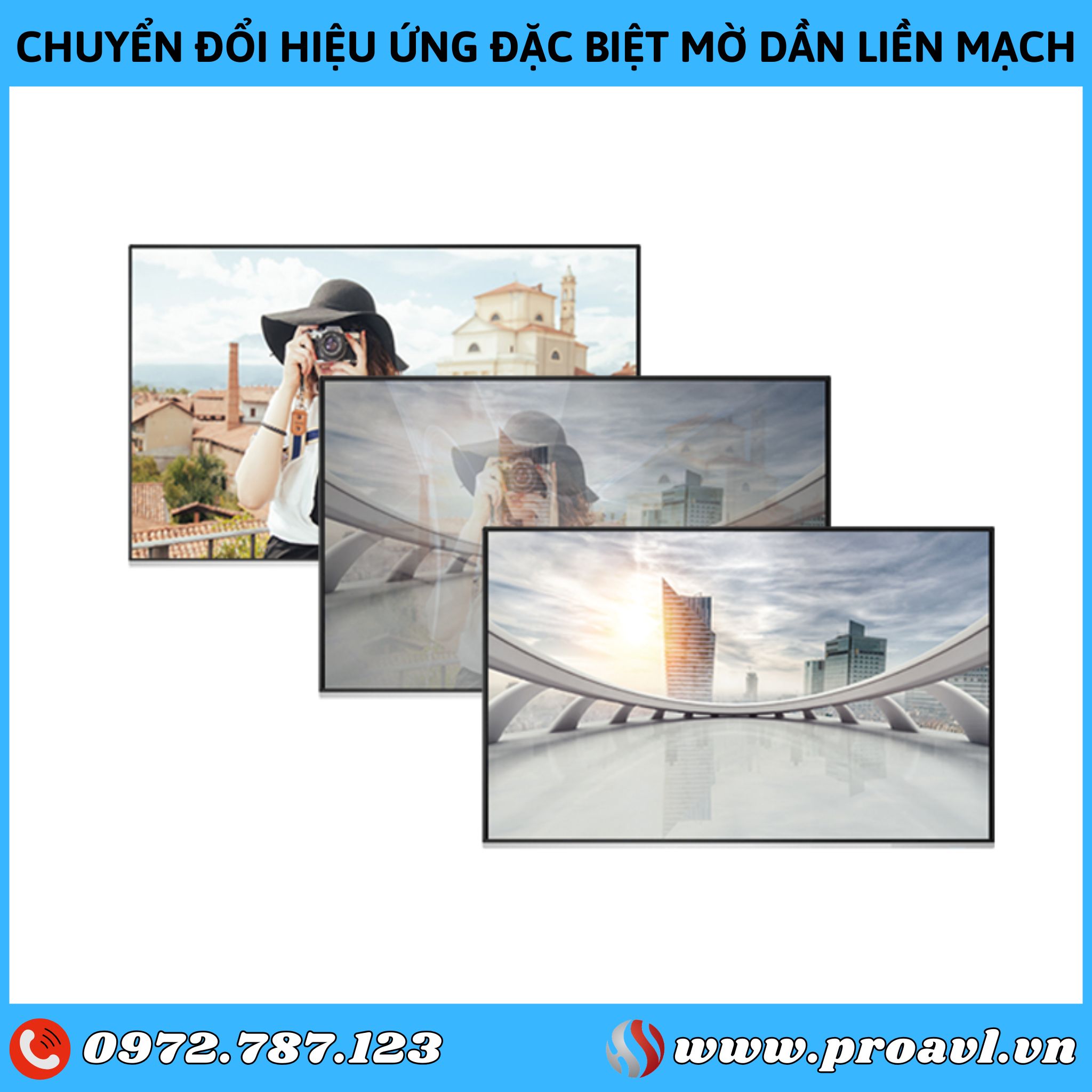

Seamless fade special effect transition

Whether it is switching a single signal or switching an entire scene pattern, KSV6 can achieve seamless transitions between fade in and fade out, and there will be no black screen, flicker, delay and other phenomena during the transition.

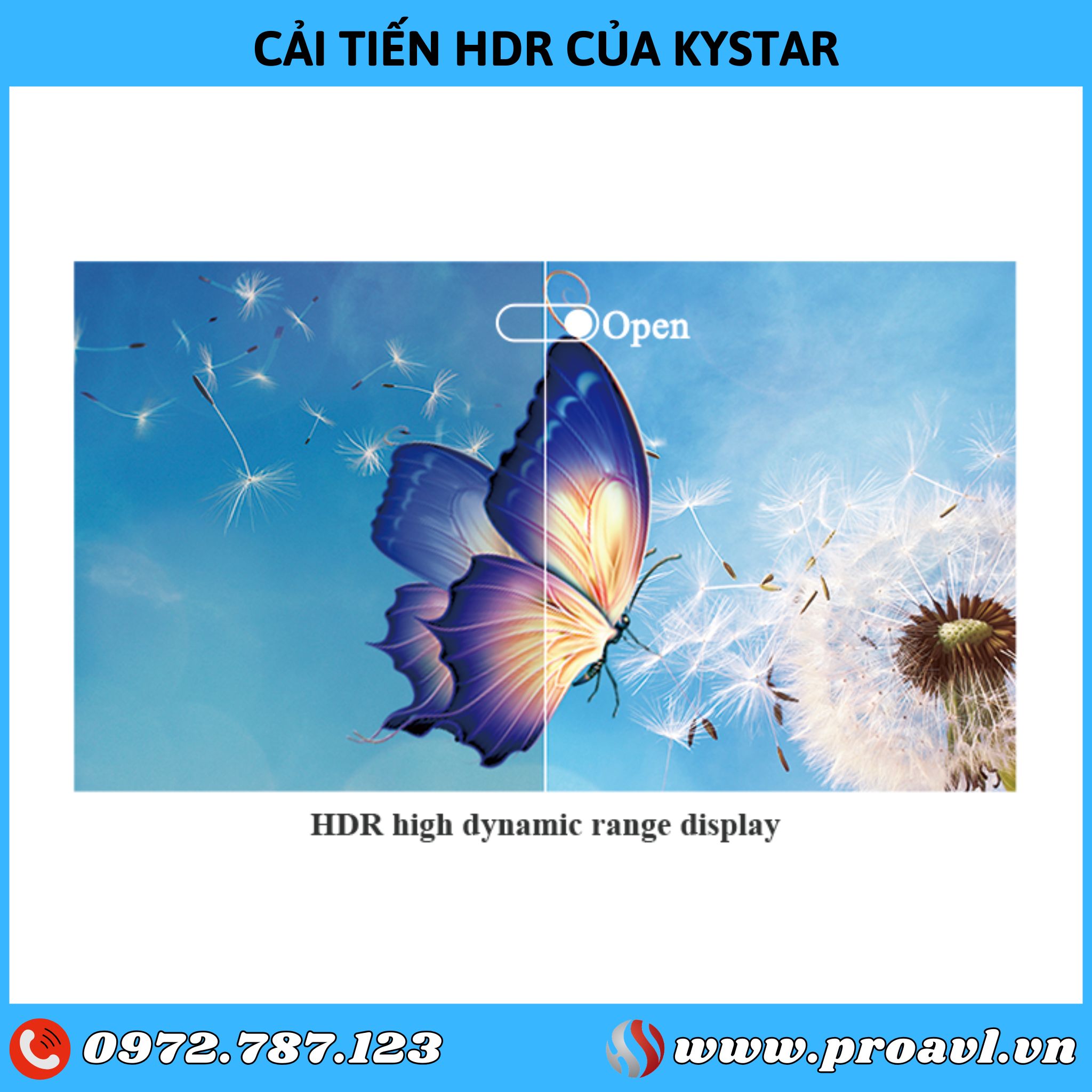

Kystar HDR Enhancement

KLS6 supports Kystar HDR Enhancement (K-HDR) technology, which can perform real-time dynamic optimization according to image content, expand the dynamic range of the image, enable conventional SDR images to achieve HDR display effects, and solve the less painful points of HDR video sources in the industry. Bring a stunning visual experience.

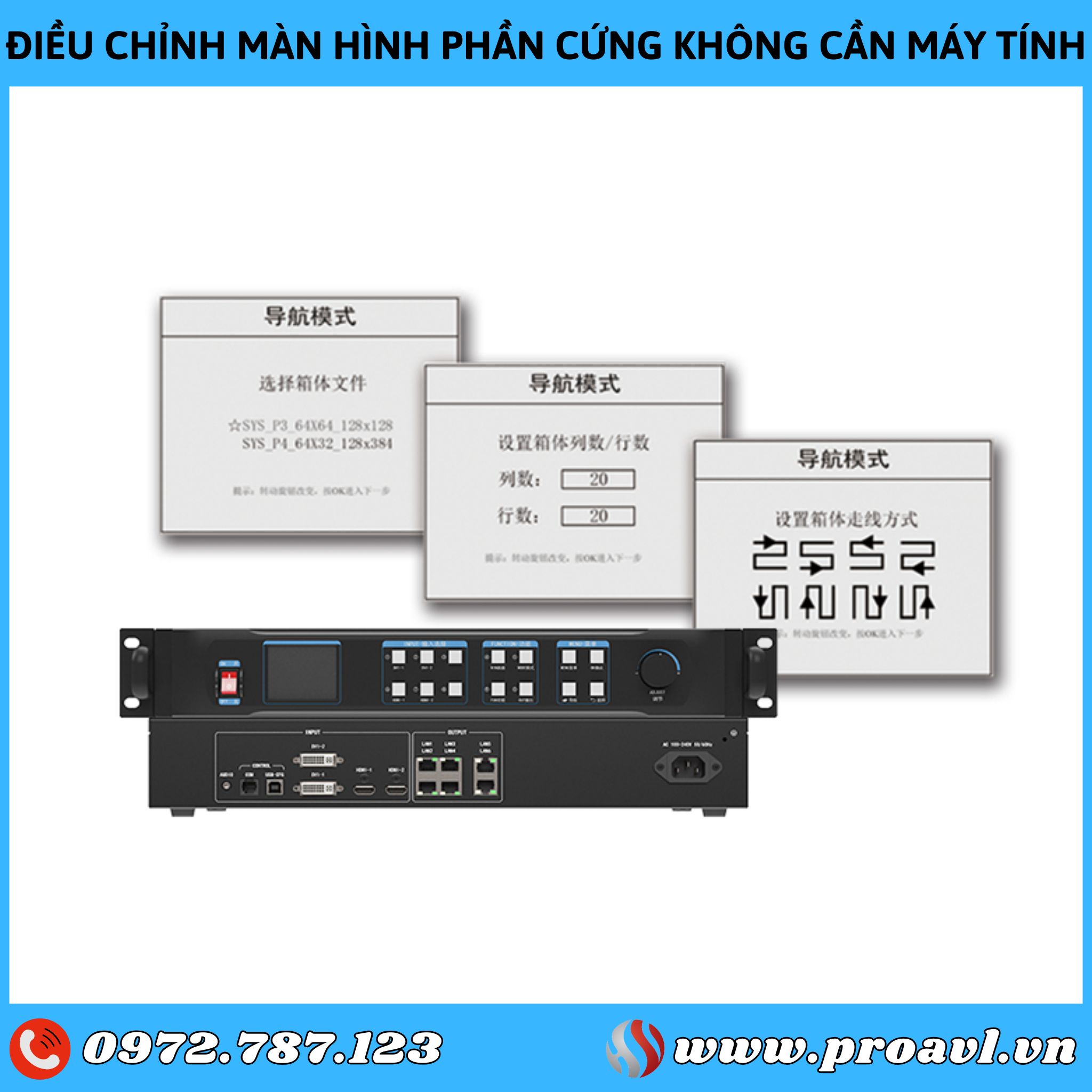

Hardware display adjustment without computer

Cabinet file information can be stored in advance. When users assemble and debug the cabinet on site, they only need to navigate through the navigation menu to quickly complete the display connection and debugging according to the instructions.

Configure readback and retransmission

With convenient offline data recovery function. Using the read-back configuration function, users can quickly read the correct configuration parameters from the receiving card when replacing the controller. Using the configuration resend function, when the user replaces the receiving card, the user can resend the configuration with one click to complete the system repair without reconfiguring the parameters.

2. Outstanding features of Kystar KLS6 LED image processor

KSV6 two-in-one controller supports 4 channels of digital signal input and has 6 network port output. The whole machine can bear a maximum load of 3.9 million pixels. Using pure hardware FPGA architecture and can run continuously for 365×24 hours to meet the needs of small-space applications. Configuration requirements for large-screen control systems.

Serial	Name	Function description
(1)	Switch	Device power switch
(2)	LCD screen	Displays the device settings menu and current device status
(3)	Input selection	(1) DVI-1: Button number 1; click to switch directly to DVI-1 signal (2) DVI-2: Button number 2; click to switch directly to DVI-2 signal (3) ：Button number 3 (6) HDMI-1: Button number 6; click to switch directly to HDMI-1 signal (7) HDMI-2: Button number 7; click to switch directly to HDMI-2 signal (8) : Button number 8 Input power status light: Solid light: Input signal is connected normally. Flashing: No signal source is connected or the signal source is connected abnormally.
(4)	Function shortcuts	(4) Screen: Button number 4; screen switching shortcut key (5) Mode: number key 5; user mode shortcut key (9) Function: Number key 9; shortcut keys for commonly used functions (0) OUT Output: Number 0 key; Black screen output shortcut key
(5)	Menu	Menu: Click to enter or return to the main menu interface OK：Confirm button Navigation: Click to enter navigation debug Back: Click to exit the current interface
(6)	Knob	Press the knob to confirm the selection. Rotate the knob to select menu options or adjust parameters.

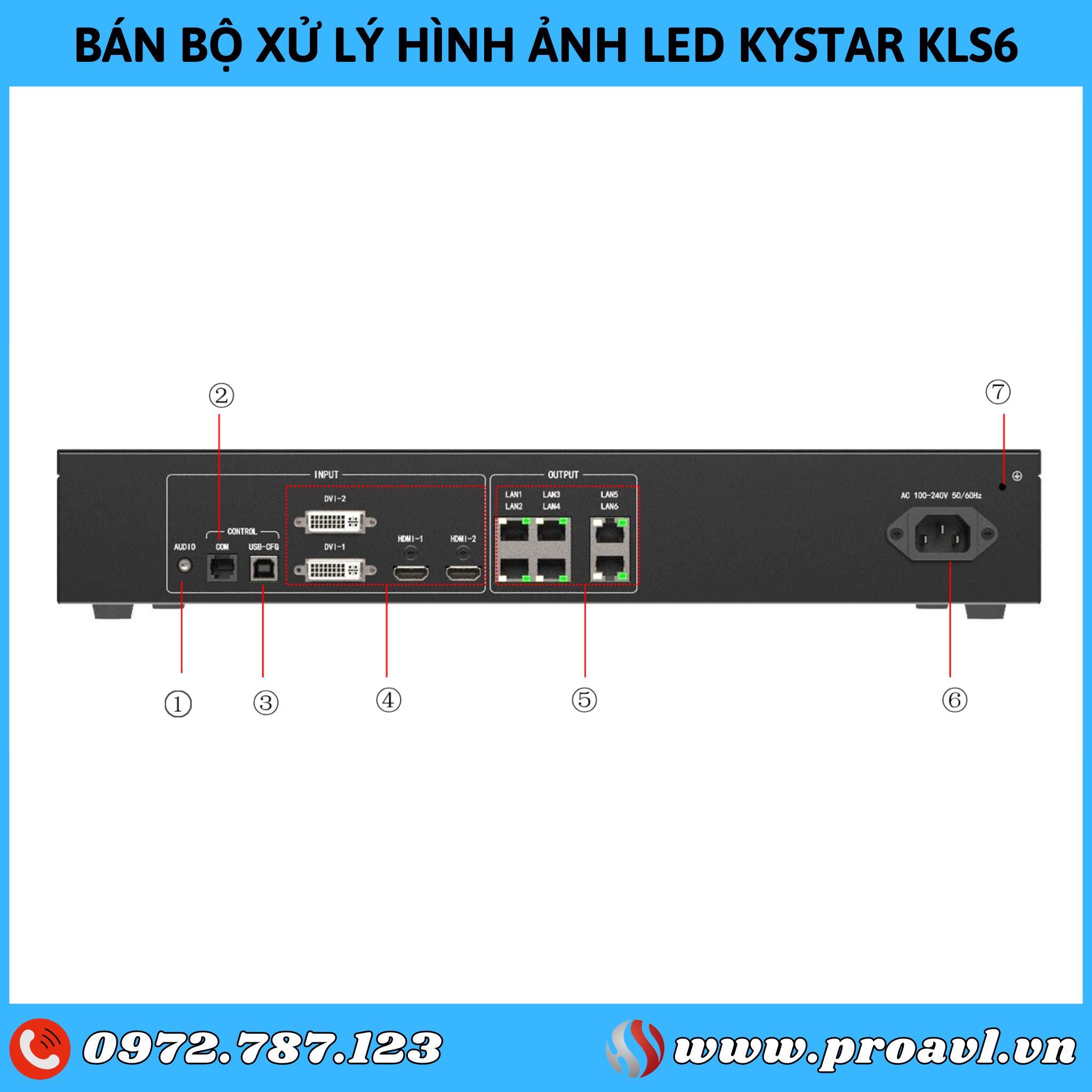

Type	Quantity	Specifications
(1)	AUDIO	1/8" TRS audio input, 3.5mm stereo audio interface, 2.0Vp-p / 10 KΩ
(2)	COM	RS232 interface, used to connect central control device; Data transmission rate is 1200、2400、4800、9600、19200、38400、57600、115200 (BT)
(3)	USB-CFG	USB-CFG interface：for connecting to PC host computer for control
(4)	Input interface	DVI-1： Support up to 1920x1200@60Hz, Support customization resolution, max width 2048, max 4000, Support signal format RGB444, YcbCr422, YcbCr444 DVI-2： Support up to 1920x1200@60Hz, Support custom resolution, max width 2048, max 4000, Support RGB444, YcbCr422, YcbCr444 signal formats HDMI-1：Support max 1920x1200@60Hz, Support custom resolution, max width 2048, max 4000, Support RGB444, YcbCr422, YcbCr444 signal formats HDMI-2：Support max 1920x1200@60Hz, Support custom resolution, max width 2048, max 4000, Support RGB444, YcbCr422, YcbCr444 signal formats
(5)	Output interface	LAN1-LAN6：Used to transmit data to the receiving card -Load a network port: 655360 pixels -Total upload: 3.9 million pixels, max width 8000 or max 4000
(6)	Power outlet	Connect AC power source -100-240V AC~50/60Hz
(7)	Ground connector	Used to ground equipment

Full machine specifications
Input power	100-240VAC 50/60Hz 0.6A
Operating temperature	0-45℃
Size	483×270.5×73mm (L×W×H)
Net weight	4kg
Total machine capacity	60W
