Kystar Kls24 Image Processor

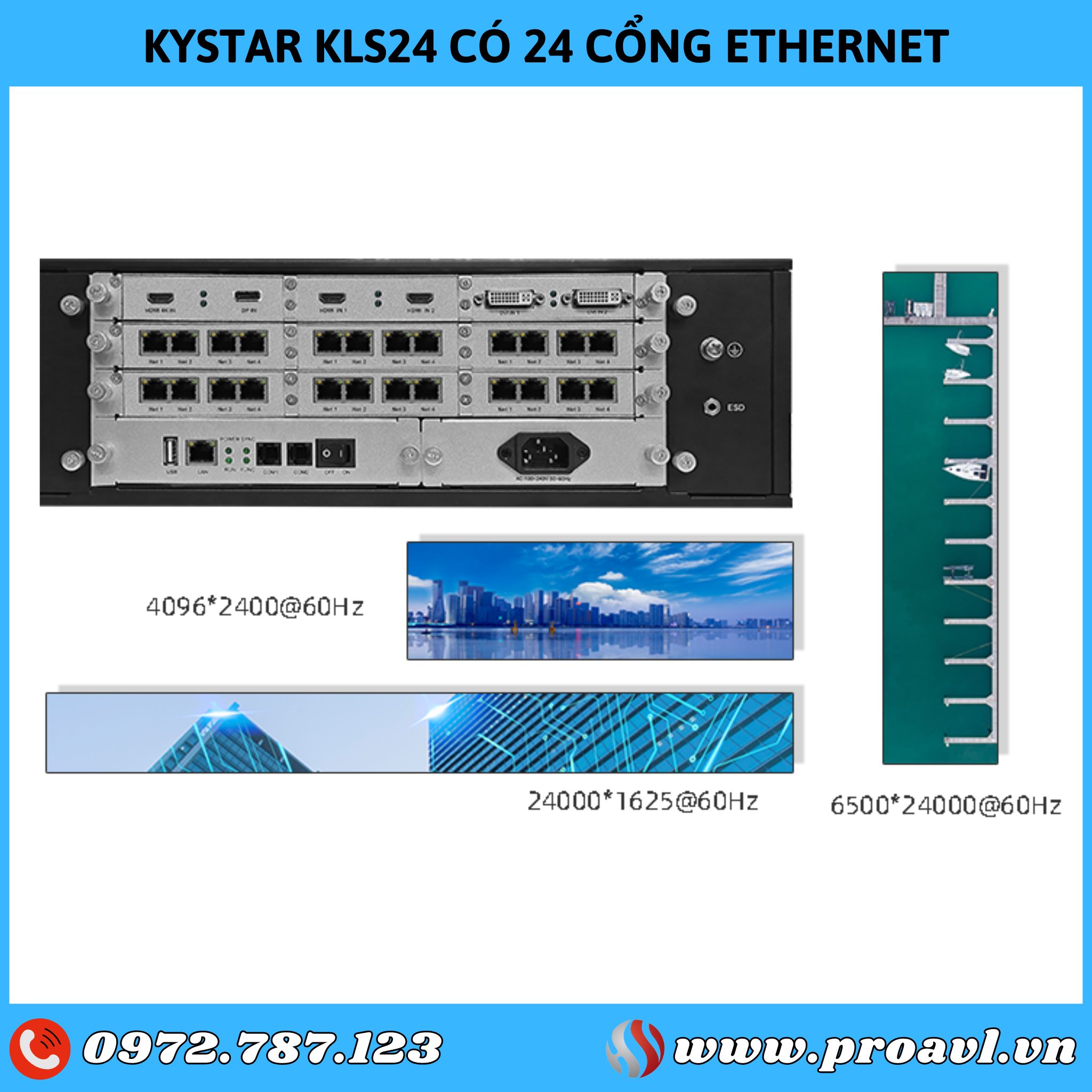

1. Outstanding features of Kystar KLS24 LED image processor

• 24 Ethernet ports

KLS24 is equipped with 24 network port outputs, supporting a maximum load of 13.8 million pixels, a maximum width of 24,000 pixels, and a maximum height of 24,000 pixels.

LED display can be controlled directly without external sending controller.

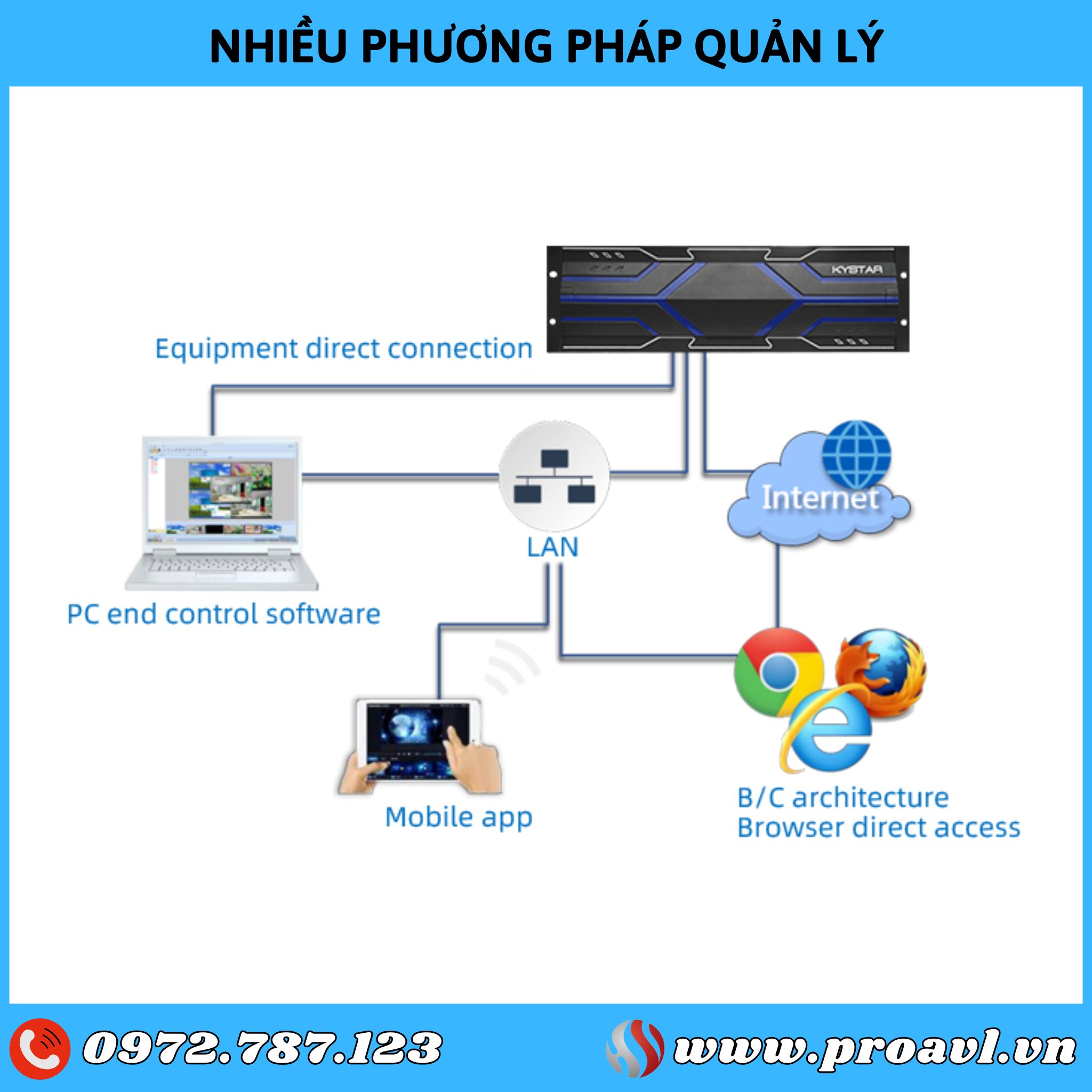

• Multiple management methods

Connect directly via network cable or connect to local network to use PC-side control software for operation and management.

Use browser to control and manage by accessing LAN or Internet.

Use mobile device APP to control and manage via wireless network.

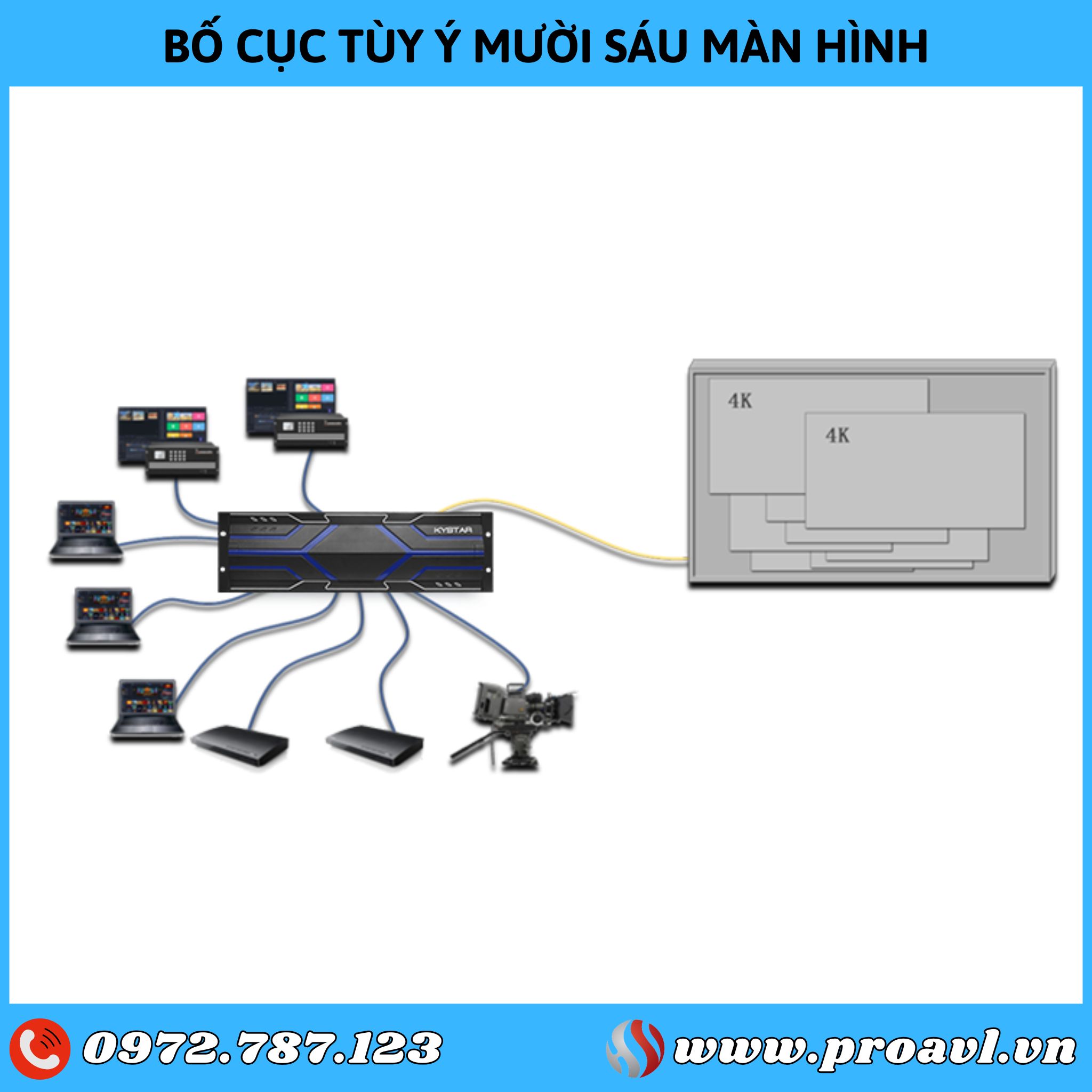

• Sixteen screen custom layout

KLS24 supports two-way 4K@60Hz signal conversion on the screen

The KLS24 allows up to 16 signal displays. All input signals can be displayed simultaneously on the screen, including two 4K signals.

The screen can be displayed on the output network port and supports arbitrary size and stacking settings.

• CrossInt connection technology

KSV24 supports Catstar CrossInt image binning technology, which can effectively eliminate the phase difference between different image binning modules, thereby avoiding the phenomenon of sub-pixel aberration when binning.

• Safe and Worry-Free FPGA Architecture

Hardware FPGA architecture: no CPU, no core, no risk of poisoning and crash, stable system running MTBF>30,000 hours, support 365×24 hours continuous operation.

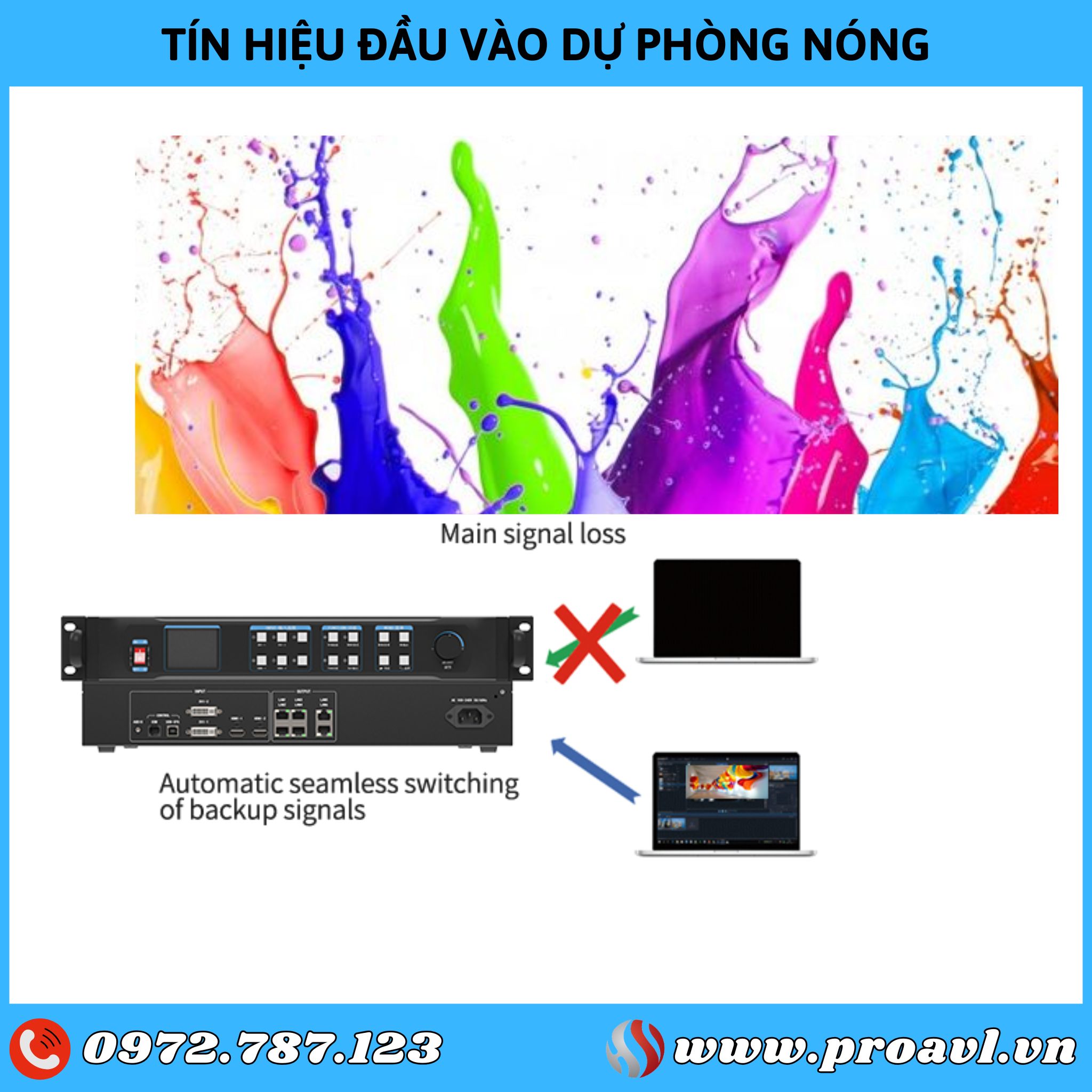

• Hot spare input signal

Any signal source can be designated as a backup for the current signal. When the signal fails, the backup signal is automatically switched seamlessly.

2. Outstanding features of Kystar KLS24 LED image processor

Kystar KLS24 LED video processor is a magic control processor designed for large-screen LED live performance. It adopts industry-leading design technology and complies with international and industrial standards. Pure hardware FPGA design architecture, all product boards adopt modular design, input board can be freely selected, is the industry's supporting 4K@60Hz input 3U equipment.

The entire machine has a custom load of 13.8 million pixels, meeting most practical needs.

• Functional features

- Pure hardware FPGA architecture: no CPU, no kernel, no risk of poisoning and crash, the system runs stably. MTBF > 30000 hours, support 365 × 24 hours continuous operation.

- Single network port carries 650000 pixels, the maximum load of the whole machine is 13.8 million pixels, the maximum width can reach 24000 pixels and the maximum height can reach 24000 pixels. The single machine has 24 network port outputs.

- Multi-screen display, can display up to 16 screens of the entire machine at the same time, and can display up to 8 screens of a single-layer output board at the same time. The screen can be displayed on the entire output network port, and supports arbitrary size and overlay settings.

- 4K@60Hz Module available, support dp1.2, hdmi 2.0 input, resolution up to 4096 × 2160@60Hz or 7680 × 1080@60Hz.

- Software control, users can directly connect to the host computer software or LAN control, and support B/S architecture, users can use the browser to access the device via LAN or Internet for management.

- Group screen management, the device supports two groups of screen management, each group of screens corresponding to the output port resolution can be set separately, to meet the mixed control needs of various display terminals under special screens and complex scenes.

- Super high resolution ratio technology, video compensation processing algorithm, unlimited size to reduce the image, and image details are reserved to reduce the phenomenon of loss of focus after multiple magnifications.

- Cross-pairing processing technology can effectively eliminate the pairing deviation and asynchronization.

- Mode call function, users can preset multiple display layouts, can be called with one key when using, support up to 200 modes.

- Mobile terminal management function, through the mobile terminal application software to set device parameters and signal management, support Android, IOS.

- Seamless switching function, in the signal switching image or call mode, the whole process no black screen, no flashing, no stuck.

- The device resolution can be set by the user via the EDID function.
