Product Description
Review

Article content

Features of Kystar KP1Pro/KP2Pro control box
Technical specifications of Kystar KP1Pro/KP2Pro control box
Contact information to buy genuine Kystar KP1Pro/KP2Pro control box set

1. Features of Kystar KP1Pro/KP2Pro control box

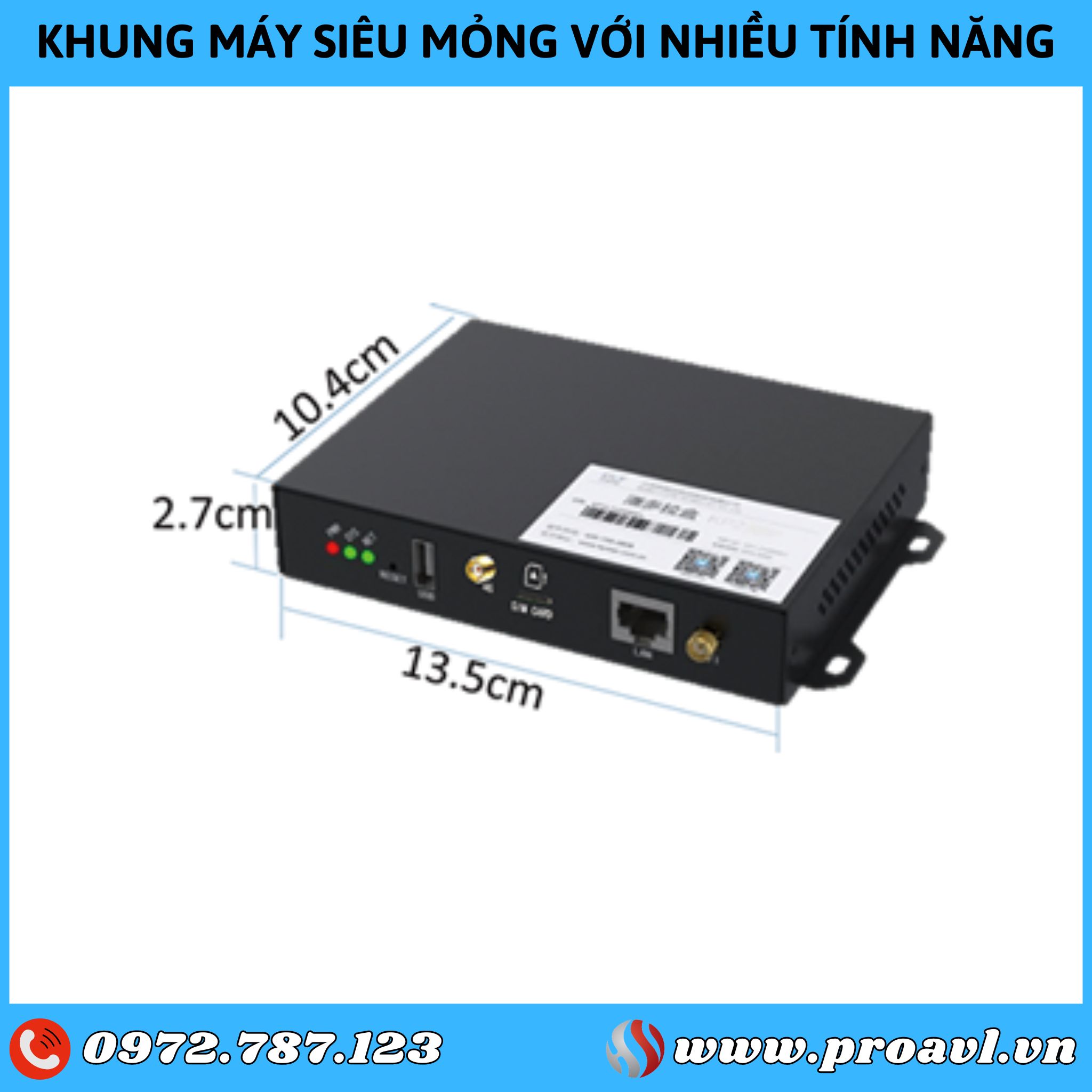

Ultra-slim chassis with more features

Ultra-thin, the volume remains the same as KP1 and KP2 while integrating more functions, optional 4G module, relay switch, temperature, humidity and brightness sensor interface;

Selected industrial-grade main chip with ultra-low power consumption, can work stably in harsh environment of -30~80°C.

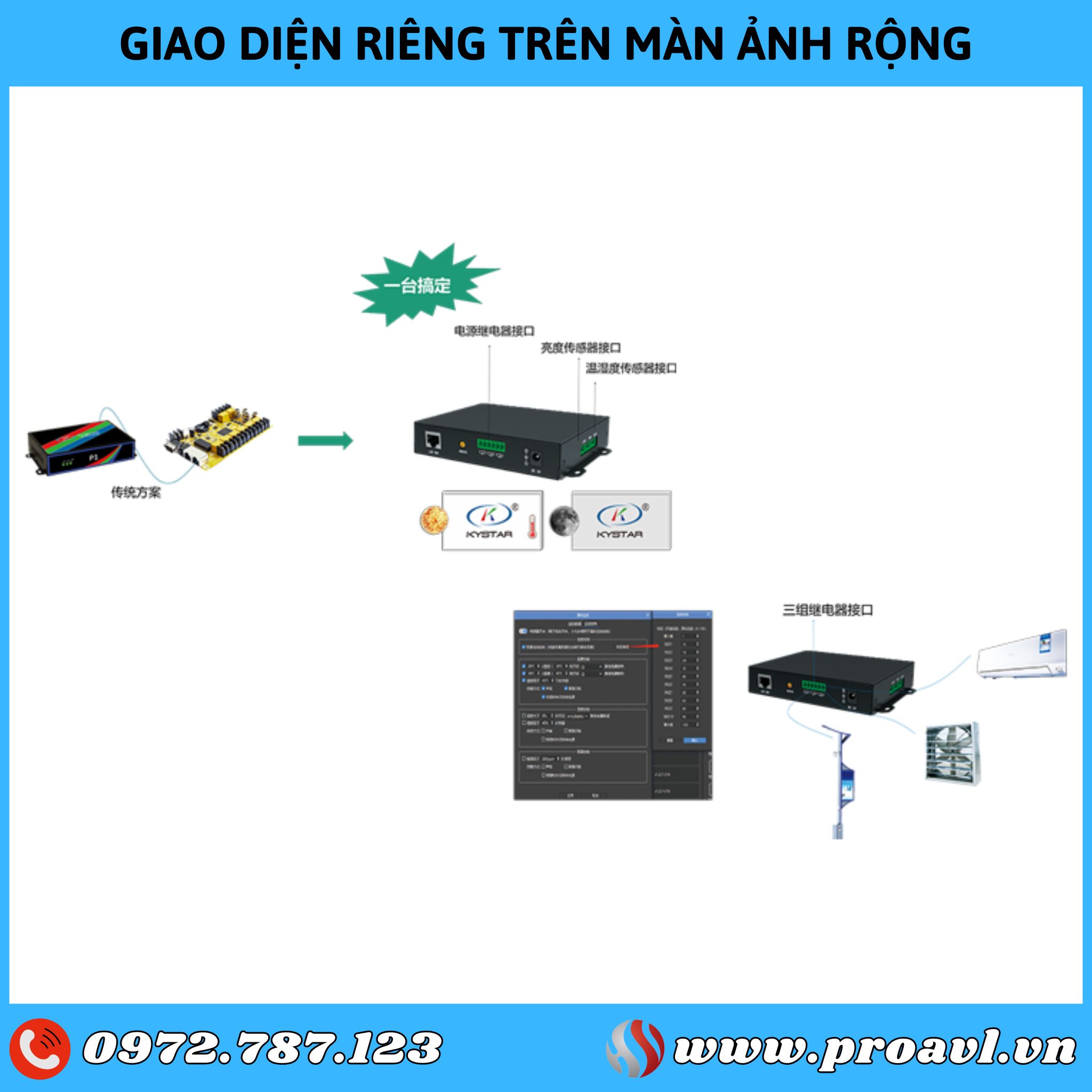

Private interface on big screen

Several interfaces are reserved on the board, and brightness sensors, temperature and humidity sensors, power relays, etc. can be customized and combined.

The sensor detects the brightness of the environment in real time and intelligently adjusts the screen brightness;

At the same time, the relay can be linked to the temperature and humidity sensor to quickly turn on the air conditioner fan according to environmental conditions, helping the LED screen operate in a comfortable environment, prolonging the life of the screen.

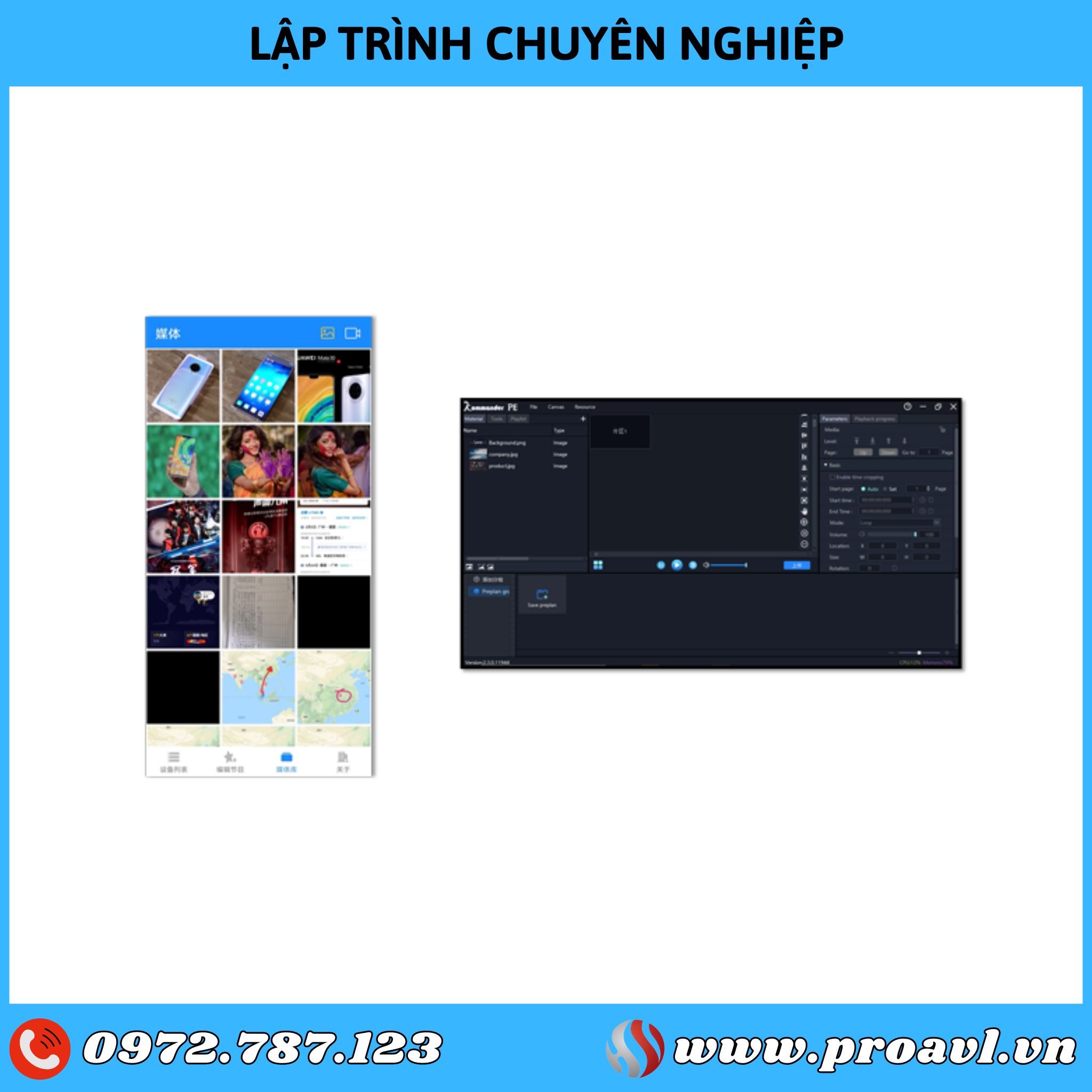

Professional programming

Program can be edited through Kystar PE multimedia editing management software on PC. Kystar PE has professional video optimization and program scheduling capabilities, which can meet complex playback requirements;

At the same time, you can also perform instant program editing through the mobile APP "Pandora's Box", wireless connection, convenient and fast.

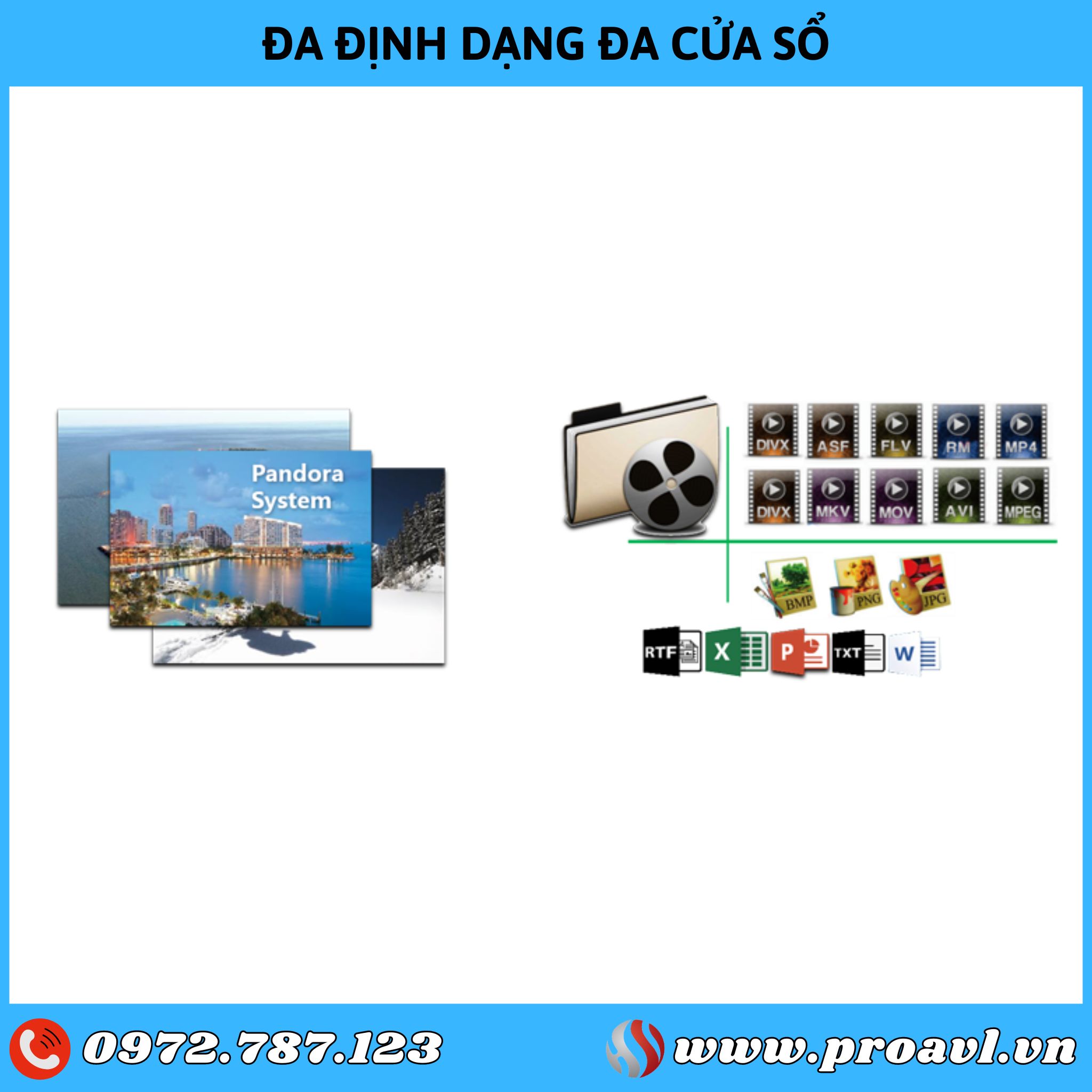

Multi-format multi-window

It has excellent multimedia playback capabilities, supporting a wide range of video, image, audio, text and colorful text formats, and a more fluent 60hz standard output.

It has powerful multi-window playback capability and supports playing 3 1080P video windows or 5 720P video windows and more than 10 image windows at the same time.

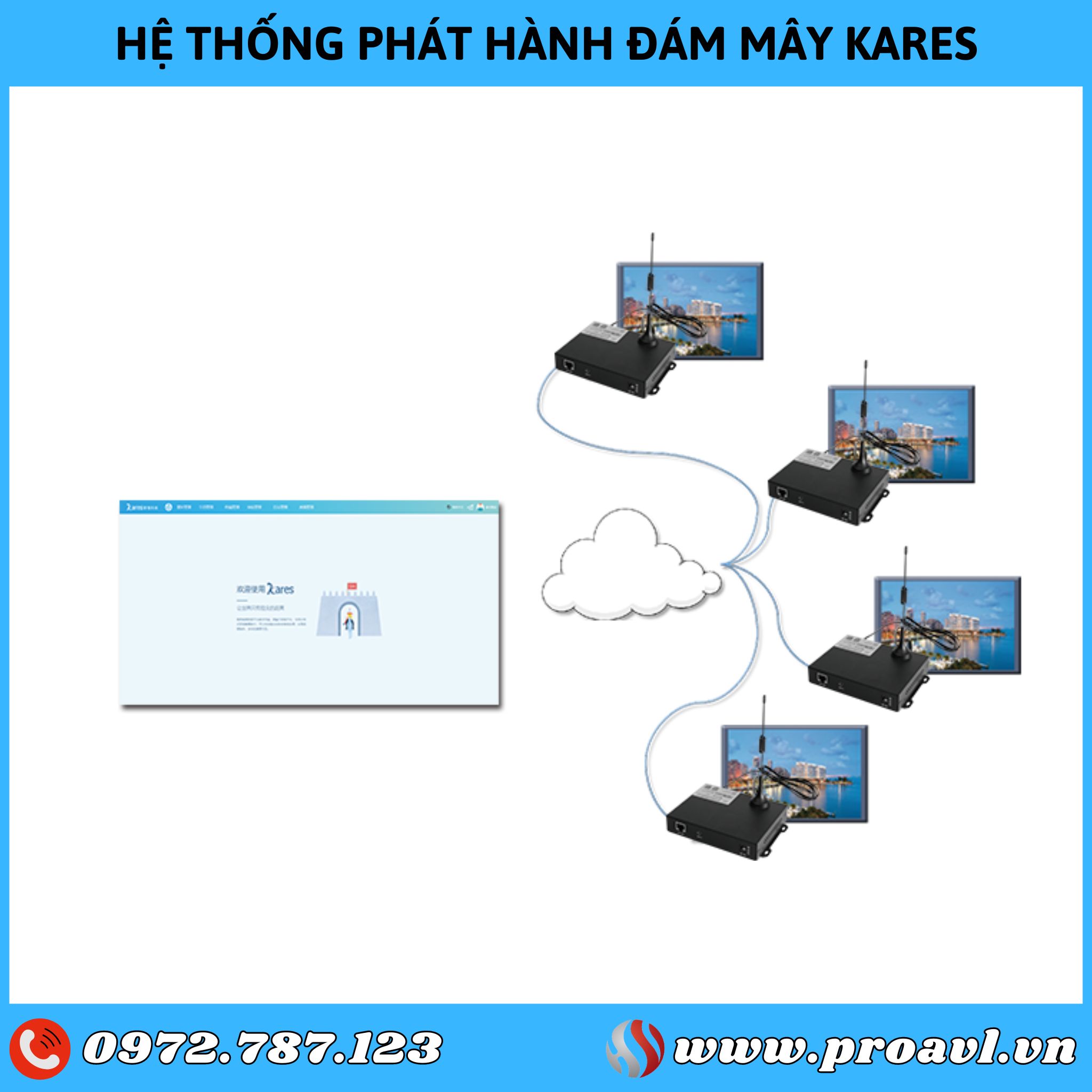

Kares Cloud Publishing System

Support cluster playback control system based on cloud platform. Pandora display terminals distributed in various locations can be connected to Kares playback control system through local area network or Internet to realize cluster display control of one manager of thousands of screens.

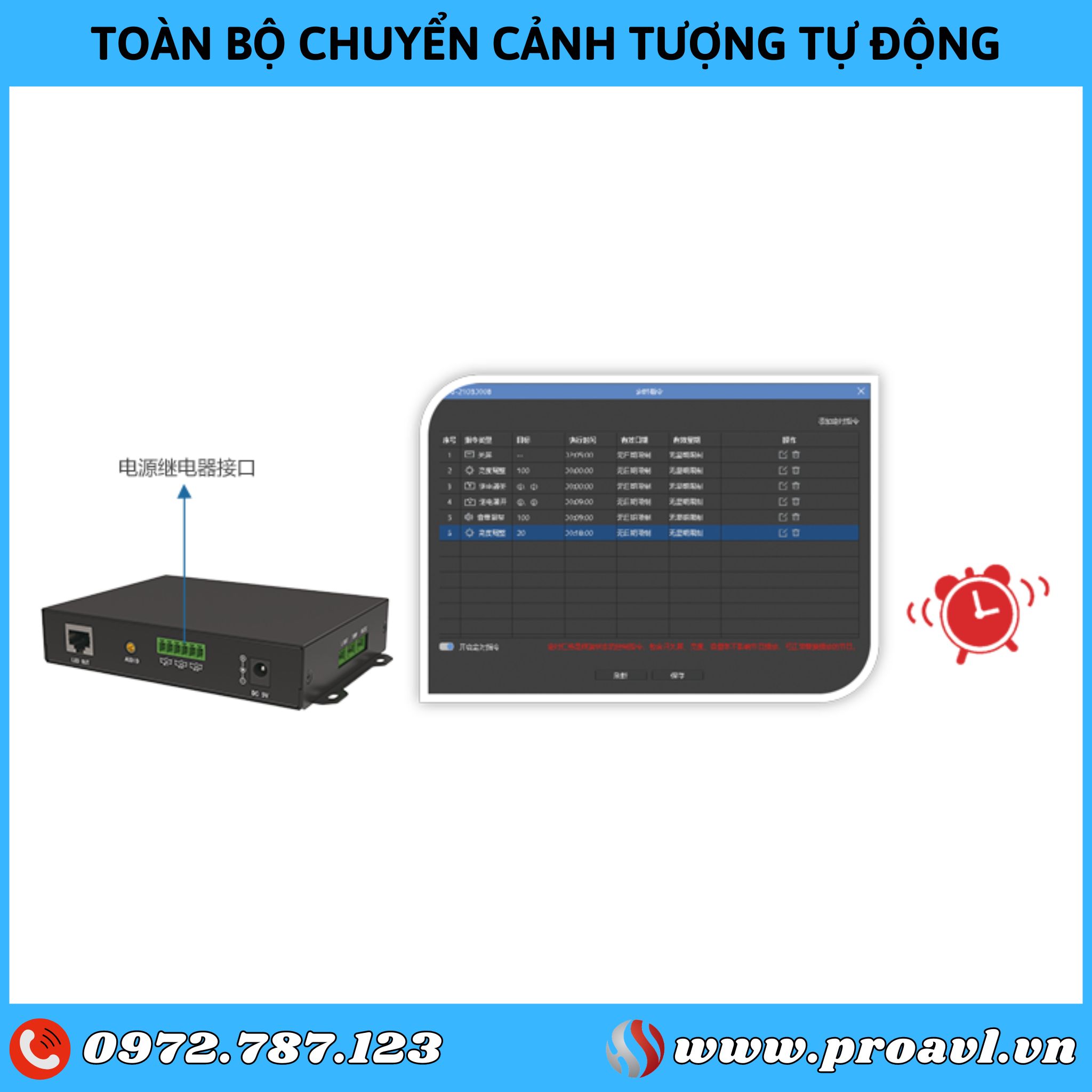

Full automatic scene transition

Integrating multiple monitoring and protection design solutions in all weather conditions, ensuring stable operation 7x24 hours.

Optional 3-way power relay, timer switch provides power to external devices, such as large screens that can be turned off when not in use, saving energy and protecting the environment.

Users can set up schedules to perform unattended scenes such as program switching, signal source and screen switching over time.

2. Technical specifications of Kystar KP1Pro/KP2Pro control box

External interface type
Gigabit output network port*2	Output signal for receiving card
Audio output port*1	1/8" (3.5mm) TRS plug output
USB2.0*1	Storage expandable (U disk or SD card, up to 128G)
100M*1 input network port	Access to LAN, cluster control
WIFI antenna*1	WiFi STA+AP dual mode, can connect to router, can be used as hotspot for mobile phone, connect computer
DC power input	DC power input
Performance specifications
Hardware performance	1.6GH, quad-core CPU, 3D GPU High speed memory DDR3 1GB@600MHz Support 1080p@60fps hard decode playback Support 1080p@30fps hardware encoding
Storage	8GB built-in memory (5G available to users)
Load	One lan port loads 650,000 pixels, the whole machine loads 1.3 million pixels, the widest is 3840, the highest is 2000
Wifi connection distance	20m (Unobstructed)
Multimedia format support
Video format	AVI, WMV, MPG, RM/RMVB, VOB, MP4, FLV and other popular video formats; Support playback of multiple videos at the same time
Audio format	MPEG-1 Layer III, AAC
Image Format	Support bmp, jpg, png
Text form	Single line text, static text, multi-line scrolling text, office
Clock	Real-time clock, multi-zone clock display and management
OSD	Support 32-bit true color OSD, can display in any position, support video/graphics mixing, can overlay graphics on video.
Full machine specifications
Size	162×104x28mm (LxWxH)
Support receiving card	Kystar All-in-One Card
Number of cards received load (one network port)	200 (Single Network Port)
Input adapter power supply	Power supply DC 5V/2A
Working current	2A
