Kystar Ls4 Image Processor
Code: Kystar LS4
Status: Stocking
- Six-channel video signal input
- Four network ports with 2.36 million pixels
- Seamless transitions with Fade-in and Fade-out
- Screen configuration without a computer
- Read back the date and recover easily
Article content
1. Outstanding functions Kystar LS4
Kystar LS4 is a three-in-one four-port network controller that integrates a professional video processor, LED emitter card and offline player for LED display solutions. One device can easily process LED displays, greatly simplifying LED solution configuration and on-site debugging.
Outstanding functions
- Professional video processor:
HD multi-format signal input;
Temporarily switch or fade between signals at will;
The screen zooms freely at will.
- Built-in LED transmitter card:
4pcs network port output, widest output can reach 3840, highest output can reach 1080 Load 2.36 million pixels;
Supports direct operation without computer, 3-step configuration.
- High performance offline player:
Support USB playback, perfect support for many video and image formats.
- One-click configuration:
Supports readback configuration and sendback configuration deployment, easy to do one-key repair.
2. Kystar LS4 technical specifications
- Six-channel video signal input
Kystar LS4 supports six-channel HD video signal input, including DVI×1, HDMI×1, VGA×1, CVBS×2, USB×1;
At the same time, LS4 supports two audio inputs and one audio output. It supports video and audio synchronous conversion. (In addition, USB and HDMI inputs support audio signals).
- Four network ports with 2.36 million pixels
LS4 is equipped with four Ethernet port outputs, maximum resolution up to 2.36 million pixels. The maximum horizontal resolution is 3840 pixels and the maximum vertical resolution is 1080 pixels.
- Seamless transitions with Fade-in and Fade-out
LS4 supports fade-in and fade-out transitions without a blank screen during the process.
- Support USB disk playback
With built-in USB player, LS4 can play images, videos and audio documents from USB disk automatically. With Kommander PE software, it can realize flexible offline play function.

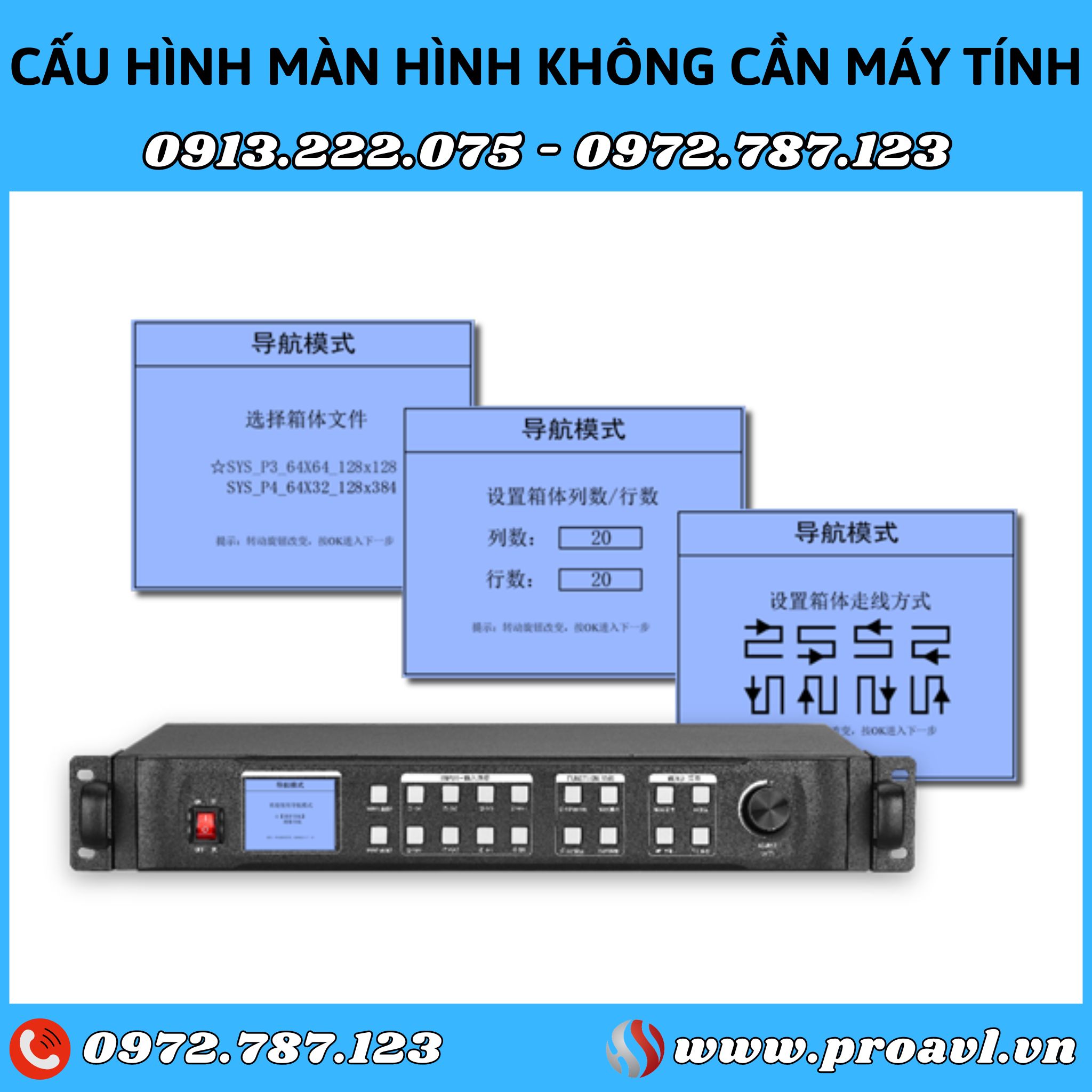

- Screen configuration without a computer
LS4 can store project file information in advance. Users can complete the cabinet mapping of the LED display according to the instructions through the navigation menu without the need for a computer.

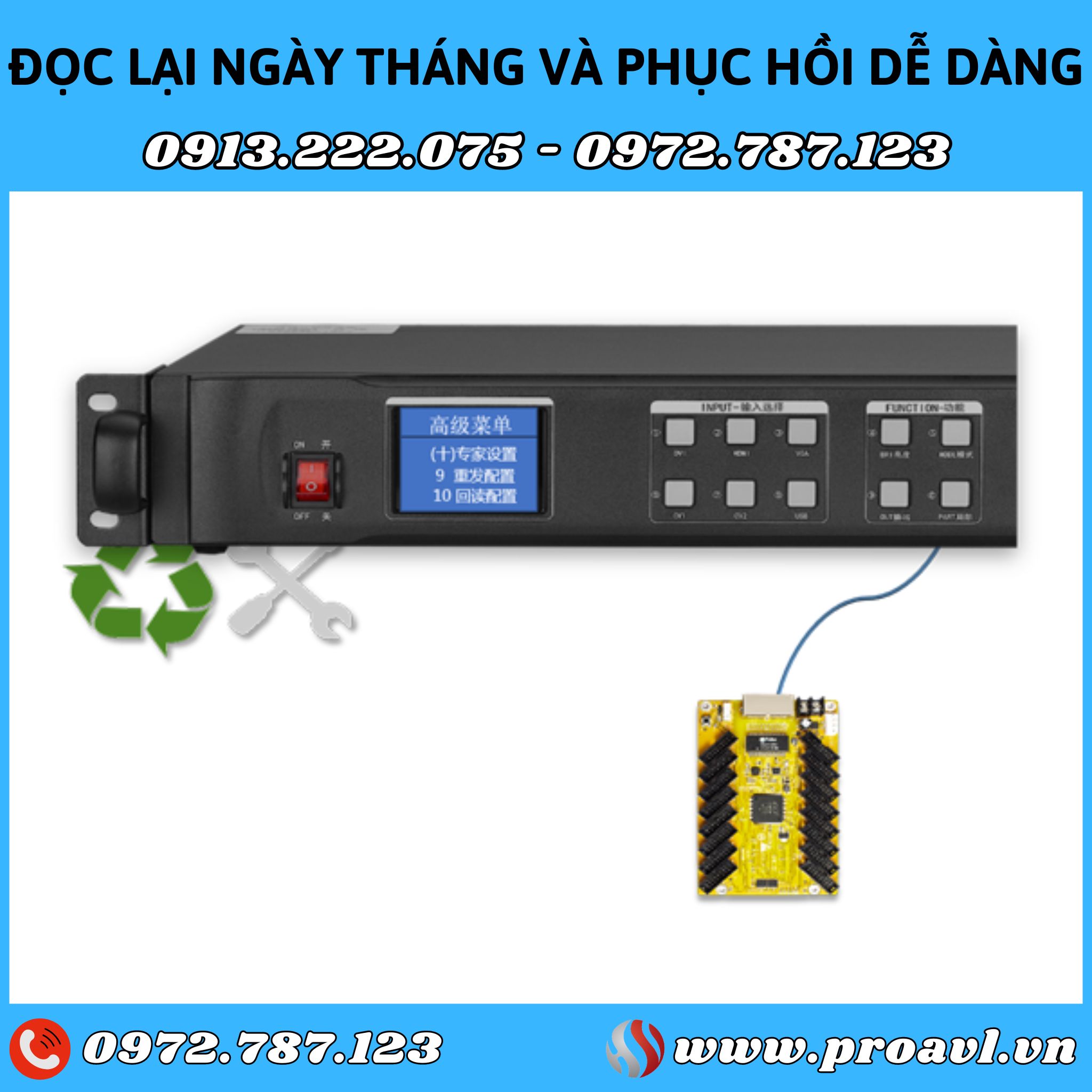

- Read back the date and recover easily
With the data readback function, users can quickly obtain the correct configuration parameters from the receiving card when replacing the controller.
With easy recovery function, when the user changes the receiving card, LS4 can resend the configuration stored in the device, to complete the system recovery without reconfiguring parameters.

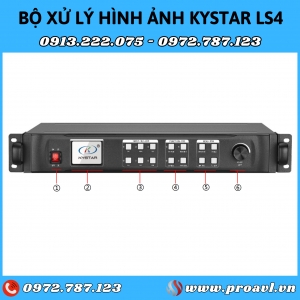

Number | Describe |
1 | Power switch |
2 | Full color LCD information display |
3 | Signal source Quick selection area |
4 | Adjust brightness, Load mode, output black screen, local panorama |
5 | Set menu, navigate, confirm, cancel function keys |
6 | Adjust knob |

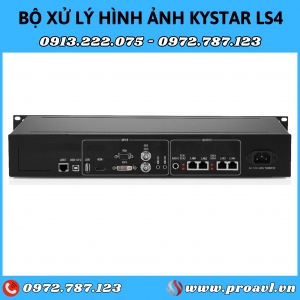

- Gate specifications
Input port | ||
Type | Number | Specifications |
CVBS(BNC) | 2 | Ntsc/pal Adaptive, supports 3D comb filter |
VGA | 1 | VESA standard, maximum support 1920x1080@60hz |
DVI | 1 | Standard 1.3, maximum support 1920x1080@60hz |
USB | 1 | USB input, NTFS system supports up to 2T, FAT32 system supports up to 192G, and single file up to 4G |
HDMI | 1 | Standard 1.3A, maximum support 1920x1080@60Hz |
1/8" TRS | 2 | 3.5mm, 2.0Vp-p / 10 KΩ stereo interface |
Exit gate | ||
Type | Number | Specifications |
LAN | 4 |
The LAN port, used to transmit data to the receiving card, has a maximum load of 2.36 pixels
|
TRS audio 1/4 | 1 | 6.3mm,2.0Vp-p/10 KΩ stereo interface |
Control port | ||
Type | Number | Specifications |
USB(Type B) | 1 | USB-CFG interface, used to connect to a computer controller on a PC |
UART(RJ-45) | 1 | Serial port protocol |
Machine specifications | |
Input power | 100-240VAC 50/60Hz 0.6A |
Working temperature | 0-45℃ |
Size | 483×270.5×73mm(L×W×H) |
Net weight | 5kg |
Full machine capacity | Consumption 36W |
- Device size
