Kystar LS2 LED Image Processor

Price: Contact

Status: Stocking

Six channel video signal input
Dual network ports with 1.3 million pixels
Seamless transitions with Fade-in and Fade-out
Support USB disc playback
Hardware setup screen, no computer required
Read back date and restore easily

Buy now

Top Selling Products

Kystar EX Series Image Dispersion Processor

Contact

Kystar Kls8Pro Image Processor

Contact

Code: Kystar KLS12

Kystar KLS6 Image Processor

Contact

Code: Kystar KLS6

Product Description
Review

Article content

Outstanding functions of Kystar LS2
Kystar LS2 Specifications
Contact to buy genuine Kystar LS2 at good price

1. Outstanding functions of Kystar LS2

Led Processor Kystar LS2 dedicated to LED display program launched a professional video processor, integrated LED sending card, offline player in one, highly integrated triple sending controller, one device can easily handle large screen, facilitate the LED configuration

Two-in-one video controller

Six channel video signal input

Led Processor Kystar LS2 supports six-channel HD video signal input, including: DVI×1, HDMI×1, VGA×1, CVBS×2, USB×1.

At the same time, LS2 supports two-channel audio input and one-channel audio output. It supports video and audio synchronization switching. (In addition, USB and HDMI support audio transmission).

Dual network ports with 1.3 million pixels

Led Processor Kystar LS2 has two network port outputs, the maximum load is up to 1.31 million pixels. The maximum width is 3840 pixels and the maximum height is 1536 pixels. And the network port output also supports synchronous audio signal transmission.

Seamless transitions with Fade-in and Fade-out

Kystar LS2 supports fade-in and fade-out signal switching without blank screen during the process.

Support USB disc playback

With built-in USB player, LS2 can play pictures, videos and audio documents from USB disk automatically. With Kommander PE software, it can realize flexible offline playback function.

Hardware setup screen, no computer required

Led Processor Kystar LS2 can store project file information in advance. Users can complete the cabinet mapping of LED display according to the instructions through the navigation menu without the need for a computer.

Read back date and restore easily

With the data re-read function, users can quickly obtain the correct configuration parameters from the receiving card when replacing the controller.

With easy recovery function, when the user changes the receiving card, LS2 can resend the configuration stored in the device, to complete the system recovery without reconfiguring the parameters.

Functional features

Professional video processor:

HD multi-format signal input

Temporary transition or fade between arbitrary signals Free zoom display at will

Integrated LED emitting card:

2 network output ports, maximum output width 3840, maximum height 1536

Load 1.3 million pixels:

Support without direct operation on computer, 3-step configuration screen

High performance offline player:

Support USB playback, perfect support for multiple video and image formats

Offline scheduled tasks automatically play or relay signals at user-set times

One-click configuration:

Support read-back configuration and deploy resend configuration, easy to perform one-key repair

2. Kystar LS2 Specifications

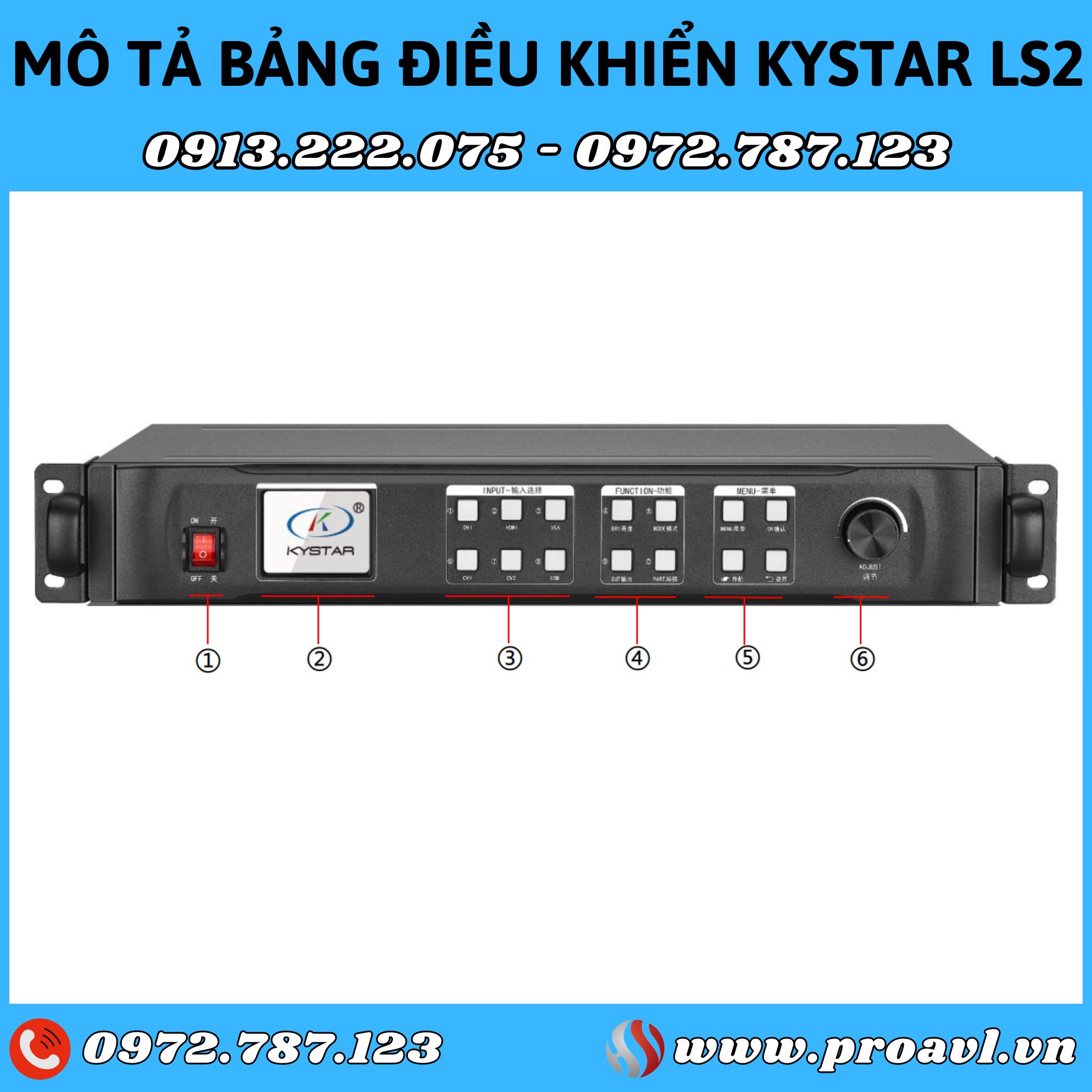

Dashboard Description

Serial number	Function description
1	Power switch
2	Full color LCD information display
3	Signal Source Quick Selection Area
4	Adjust brightness, Load mode, black screen, local panorama
5	Set menu, navigation, confirm, cancel function keys
6	Adjust the knob

Port Specifications

Input port
Type	Number	Specifications
CVBS（BNC)	2	Ntsc/pal Adaptive, 3D comb filter support
VGA	1	VESA standard, maximum support 1920x1080@60hz
DVI	1	Standard 1.3, maximum support 1920x1080@60hz
USB	1	USB input, NTFS system supports up to 2T, FAT32 system supports up to 192G and single file up to 4G
1HDMI	1	Standard 1.3A, maximum support 1920x1080@60Hz
1/8 TRS Audio	2	3.5mm stereo audio interface, 2.0Vp-p / 10 KΩ

Exit
Type	Number	Specifications
LAN	2	LAN port, used to transmit data to the capture card, the widest output can reach 3840, the highest output can reach 1536, the maximum load is 1.3 million pixels
1/4" TRS audio	1	6.3mm stereo interface, 2.0Vp-p / 10 KΩ

Exit
Type	Number	Specifications
USB (Type B)	1	USB-CFG interface, used to connect to the computer controller on PC
UART (RJ-45)	2	Serial port protocol

Specifications
Input power	100-240VAC 50/60Hz 0.6A
Working temperature	0-45℃
Size	483×245.5×73mm (L×W×H)
Net weight	5kg
Total machine power consumption	36W
