Kystar LS16 LED Image Processor

1. Outstanding features of Kystar LS16

Kystar LS16 is a splicing control processor designed for large-screen LED live performance. It adopts industry-leading design technology and complies with international and industrial standards. It supports industry-leading 4K@60Hz input 2U equipment. Supports k-hdr, making common SDR material have HDR display effect, solving the pain of less HDR material.

The entire machine has 9.6 million custom loading pixels, meeting most practical needs.

• Kystar HDR Enhancement improves images

LS16 supports Kystar HDR Enhancement (K-HDR) technology, which can perform real-time dynamic optimization according to image content, expand the dynamic range of the image, enable conventional SDR images to obtain HDR display effects, and solve the less painful points of HDR video sources in the industry. Bring a stunning visual experience.

• Sixteen two-in-one network ports

9.6 million pixel stitch output

LS16 is equipped with 16 network port outputs, supporting a maximum load of 9.6 million pixels, a maximum width of 16000 pixels and a maximum height of 8000 pixels.

LED display can be controlled directly without external sending controller.

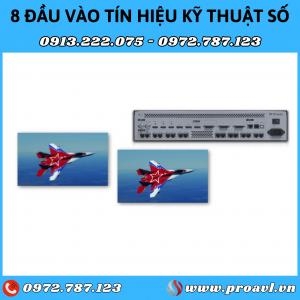

• 8 digital signal inputs

LS16 supports a total of 8 digital signal inputs: DP×2, DVI×2, HDMI×3, SDI*1 and one of the DP signals supports ultra-high resolution 4K×2K@60Hz or 8K×1K@60Hz.

• Eight screen custom layout

LS16 allows up to 8 signal screens to be displayed. All input signals can be displayed on the screen simultaneously.

• Special effects

All layers of LS16 can perform key chroma cutting function and support any transparency adjustment no matter what to realize various screen creations.

• Input preview and output monitoring

Complete input and output monitoring on one screen

Connect to the monitor via the DVI-Monitor output port, you can preview all input signals and monitor the output signal screen at the same time.

• Connect multiple machines to complete large loads

Frame sync technology realizes infinite connection

LS16 supports frame sync technology, which can be connected through the DP-Loop interface to achieve seamless pairing of large screens.

• Hot backup input signal

Seamless switching of designated backup signals

LS16 can designate any signal as the backup signal of the current signal. When the signal fails, the backup signal will automatically switch seamlessly.

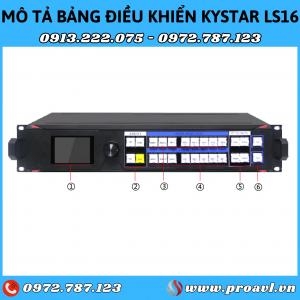

2. Description of Kystar LS16 control panel

• Gate Specifications

3. Technical specifications of Kystar LS16 gate

• Functional features

Single network port has a load of 650000 pixels, the maximum load of the whole machine is 9600000 pixels, the maximum width can reach 16000 points and the maximum height can reach 8000 points. The single machine has 16 network port outputs

A total of 8 input signals including dvix2, hdmix3, dpx2 and sdix1 are accessible, among which DP1, DP2 and HDMI3 can support 3840x2160@60Hz or 7680x1080@60Hz input

Support 8 screen display, arbitrary screen position layout, support arbitrary video recording

Pure hardware FPGA architecture: no CPU, no kernel, no risk of poisoning and crash, the system runs stably. MTBF > 30000 hours, support 365×24 hours continuous operation

All layers support opacity and transparency adjustment for best effect

Support hot signal source backup

Humanized interactive control interface, with front switches, color LCD information display, crystal keys and knobs

EDID configuration management: supports reading, modifying and customizing EDID (extended display identification data)

Support one-button black/static screen

Black edge removal/cut function: solves the black edge problem caused by the front signal and performs arbitrary cutting for any signal source (still maintaining full screen state)

Support key lock to avoid wrong operation

Color recovery settings: in client software with color recovery settings options

Support K-HDR, make common SDR material have HDR display effect, solve the pain of less HDR material

The display port output supports both display input and output at the same time and supports configuration for output playback.
