Kystar KLS4U LED Image Processor

Price: Contact

Code: Kystar KLS4U

Status: Stocking

Input power: 100-240V AC~50/60Hz
Operating temperature: 0-45℃
Dimensions: 483×270.5×73mm（L×W×H）
Net weight: 4KG
Total power consumption: 25W

Buy now

Top Selling Products

Kystar LS16 LED Image Processor

Contact

Code: Kystar LS16

Bộ Xử Lý Hình Ảnh LED Kystar KLS2U

Contact

Code: Kystar KLS2U

Kystar KLS4 LED Image Processor

Contact

Code: Kystar KLS4

Kystar LS2 LED Image Processor

Contact

Kystar Ls4 Image Processor

Contact

Code: Kystar LS4

Kystar ES16 LED Image Processor

Contact

Code: Kystar ES16

Product Description
Review

Article content

Outstanding features of Kystar KLS4U
Kystar KLS4U control panel description
Technical specifications of Kystar KLS4U gateway
Contact to buy genuine LED screen accessories

1. Features of Kystar KLS4U

Kystar KLS4U three-in-one controller is a two-network port three-in-one controller integrating professional video processor, LED sending card and offline player for LED display solutions. One device can easily handle large screens, greatly simplifying LED solution configuration and on-site debugging.

Features

The machine has 4 network ports, the maximum load of the whole machine is 2.5 pixels, the width can reach 4096 pixels, and the height can reach 1200 pixels.

Supports multiple digital signal interfaces, including 1 channel HDMI1.3, 1 channel DVI-D, 1 channel VGA and 1 channel USB.

Support direct operation without computer

Support USB playback, perfect support for multiple video and image formats.

EDID configuration management: support reading, modifying and customizing EDID (Extended Display Identification Data, Extended Display Identification Data).

Support one-key freeze/black screen function.

Black edge cut/remove function: solves the black edge problem caused by input signals and performs arbitrary cutting for any signal source (still keeping full screen state).

Support key lock to prevent misuse.

The brightness and contrast of the overall output display can be adjusted in real time and on the fly.

Supports VGA correction to solve image shift problem caused by unstable analog signal.

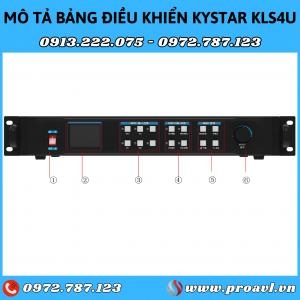

2. Description of Kystar KLS4U control panel

Serial	Name	Function description
1	Switch	Device power switch
2	Input selection	(1) HDMI：Button No. 1; click to switch directly to HDMI signal (2) VGA：Button number 2; click to switch directly to VGA signal (3): Number key 3 (6) DVI：Button No. 6; click to switch directly to DVI signal (7) USB：Button number 7; click to switch directly to USB signal (8): Number 8 key Input power status light: Solid light: Input signal is connected normally Flashing: No signal source is connected or the signal source is connected abnormally
4	Function shortcuts	(4) Brightness: number key 4; shortcut key to adjust output brightness (5) Mode: number key 5; user mode shortcut key (9) Output: number key 9; black screen shortcut key output (0) Local: number 0 key; local/global switching shortcut
5	Menu	Menu: Click to enter or return to the main menu interface OK：Confirm button Navigation: Click to enter navigation debugging Return: Click to exit the current interface
6	Knob	Knob to confirm selection Rotate the knob to select menu options or adjust parameters.

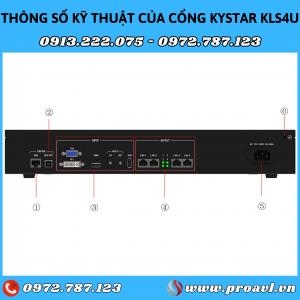

3. Technical specifications of Kystar KLS4U gate

Serial	Name	Function description
1	COM	RJ-45 interface, used to connect central control device;
2	USB-CFG	USB-CFG interface, used to connect the host computer to control the PC
3	Input interface	DVI: Supports up to 1920x1200@60Hz - Support custom resolution, widest 2048, highest 4000 - Supports RGB444, YCbCr422, YCbCr444 signal formats VGA：VESA standard, maximum support 1920×1080@60Hz HDMI：Supports up to 1920x1200@60Hz - Supports custom resolution, widest 2048 pixels, highest 4000 pixels - Support signal format RGB444、YCbCr422、YCbCr444 AUDIO IN: 1/8" TRS audio input，3.5mm stereo audio interface, 2.0Vp-p / 10 KΩ AUDIO OUT: 1/4" TRS audio output，3.5mm stereo interface, 2.0Vp-p / 10 KΩ USB: USB input. The maximum support for NTFS system is 2T, the maximum support for FAT32 system is 192G, and the maximum for a single file is 4G
4	Output interface	LAN1-LAN4: Used to transmit data to the receiving card - Single network port load: 650,000 pixels - Total load: 2.5 million pixels, widest is 4096 pixels or tall is 1200 pixels Network port indicator light: Blinking: Communicates with the receiving card normally Steady on: Abnormal communication with card Off: network cable is not connected
5	Power outlet	Connect to AC power source 100-240V AC~50/60Hz
6	Ground terminal	To ground the device

Device specifications
Input power	100-240V AC~50/60Hz
Operating temperature	0-45℃
Size	483×270.5×73mm（L×W×H）
Net weight	4KG
Total power consumption	25W
