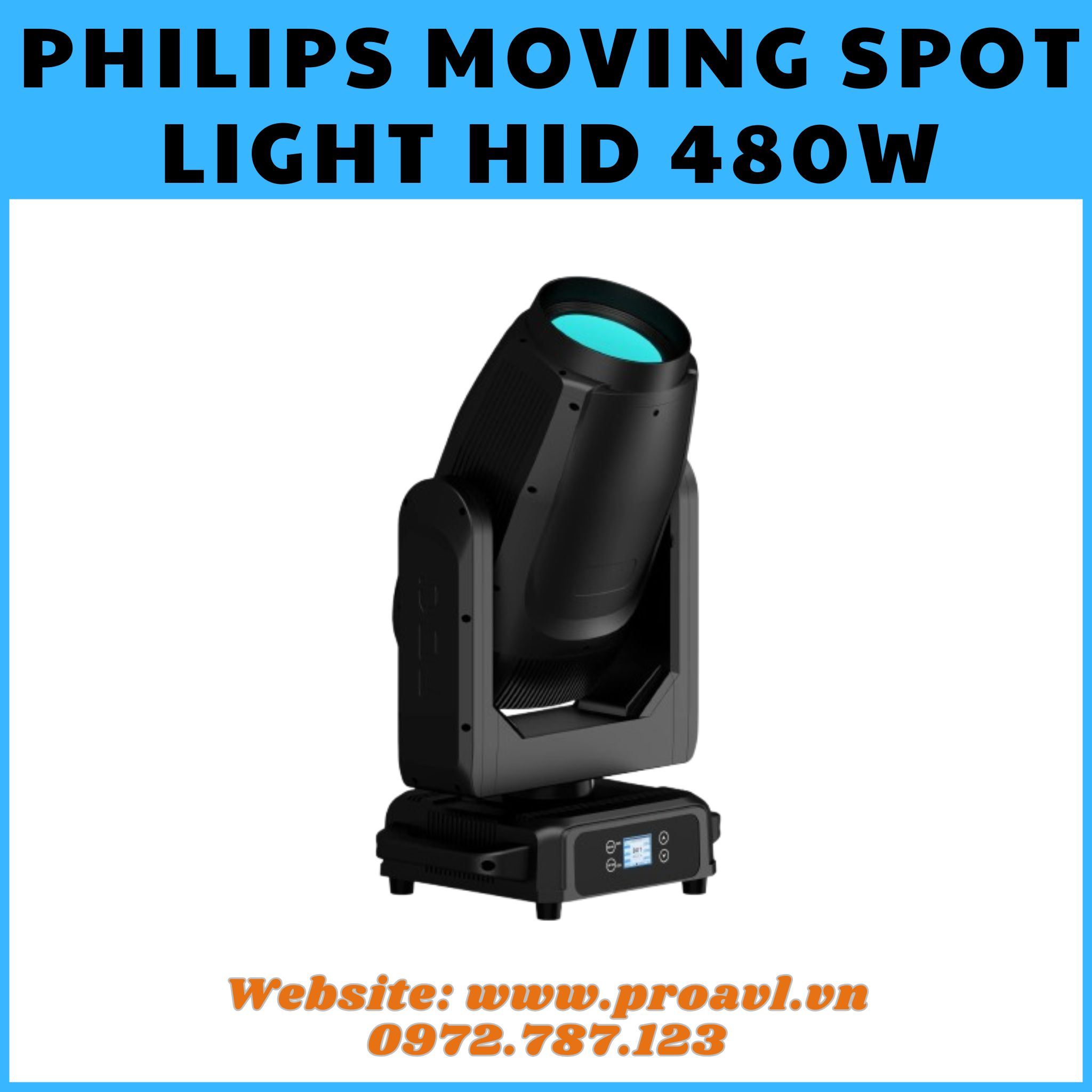

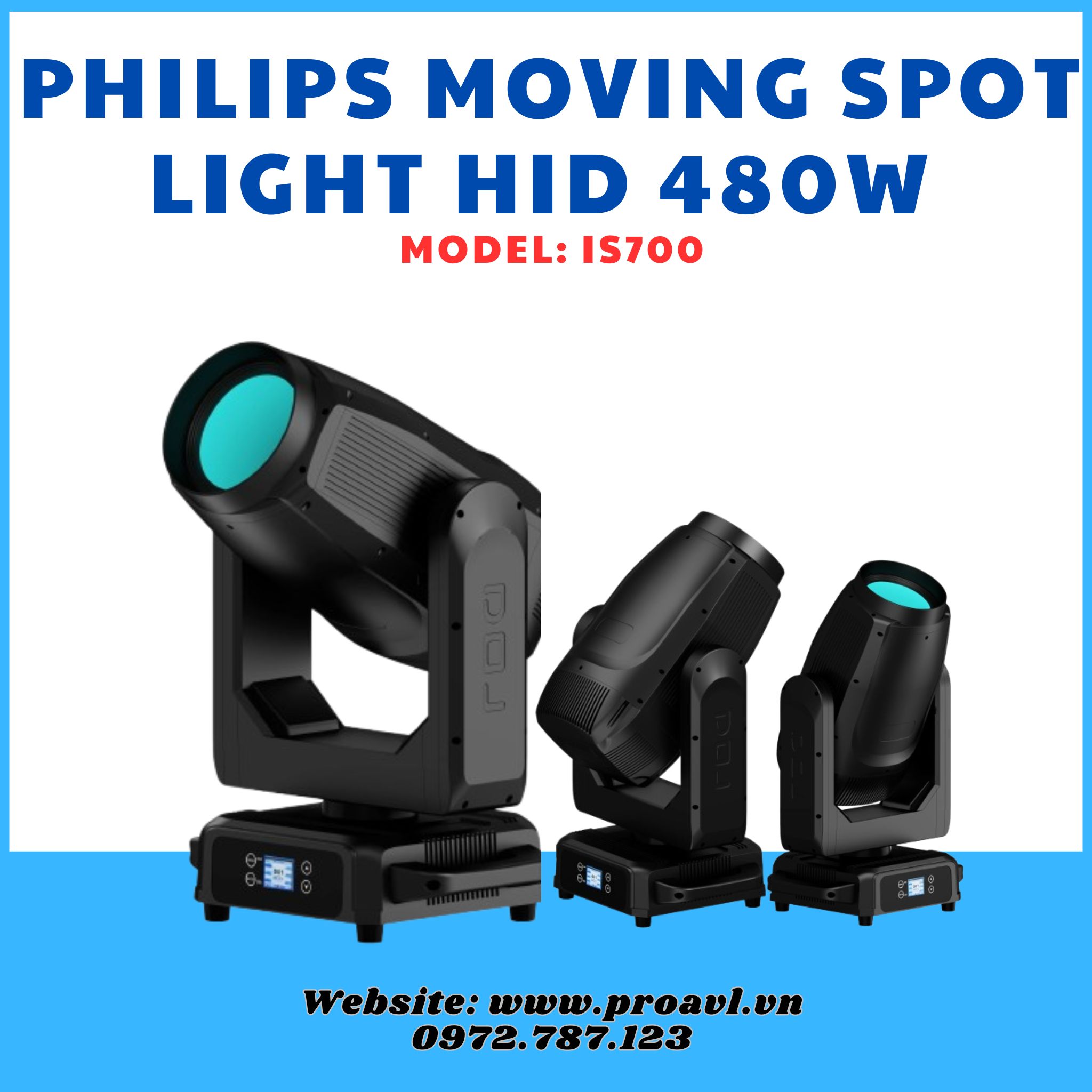

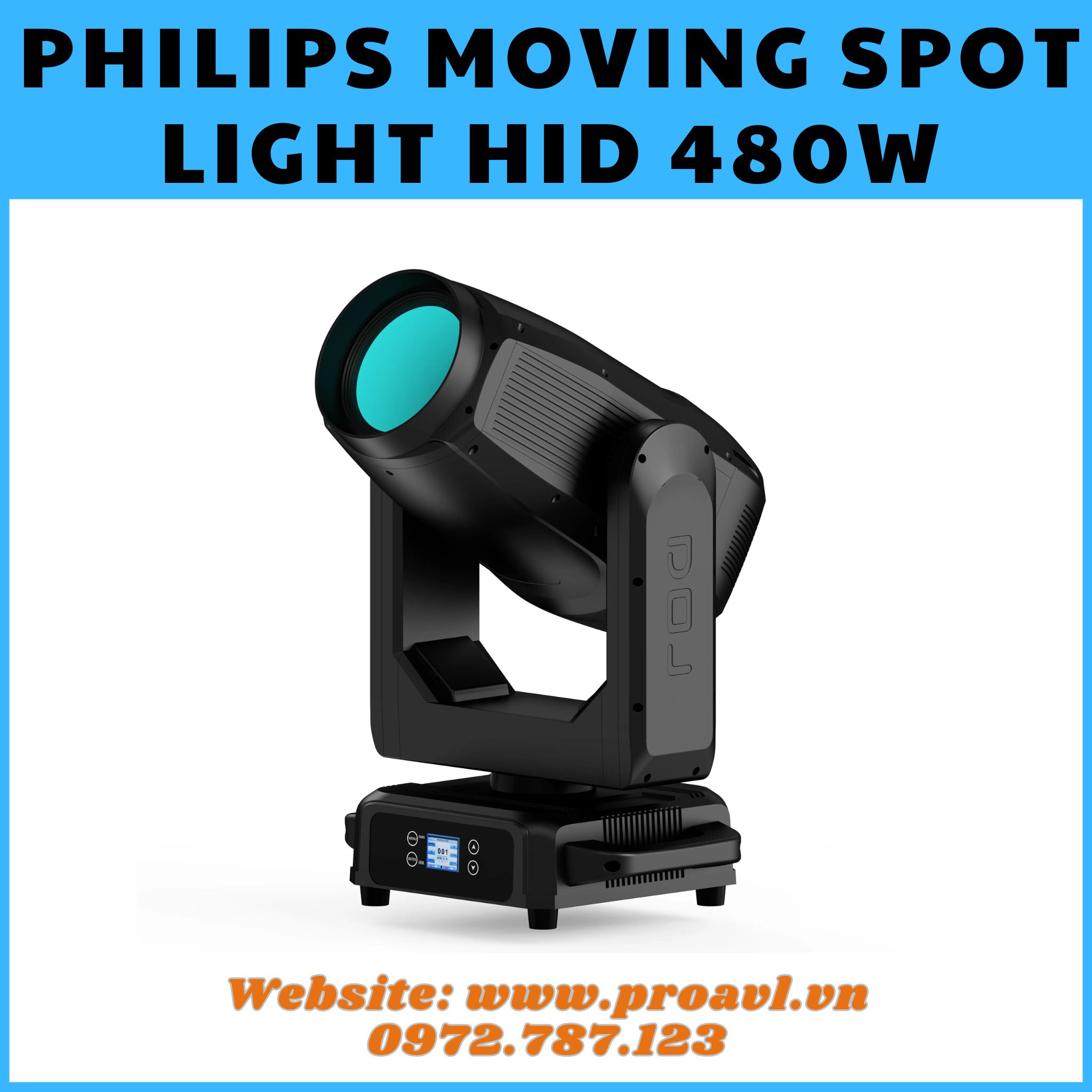

Philips Moving Spot Light HID 480W

1. Technical specifications of Philips Moving Spot Light HID 480W

Functional Overview

GF500 is a high-power pattern light with a 480W original Philips high-power light source. The model has conveyed multiple optimization designs, long-term wind path test optimization, optical matching, etc. Compared with previous pattern lights, it has obvious differences in structure. It has a rich color disk, CMY disk, fixed pattern disk, rotating pattern disk, effect disk and flexible double prism, supplemented by a variety of strobe speeds, to create a gradual fantasy light effect. Add an independent light homogenizer to make the light spot uniform. The beam angle can be switched at will according to different needs, combined with an independent atomization environment, the U-shaped frame is fully wrapped to better protect the machine.

Main features

Light source: Philips MSD480W

Input voltage: AC100V-240V, 50/60Hz

Total power: 700W

Lamp life: 3000 H

Color temperature: 7650 K

Light angle: 1.8°-50°

Standard model DS500

Effect

Strobe: high-speed strobe, double-side strobe, multiple speed strobe effects

Effect pattern plate: 1 independent fire plate, can be used for flowing water effect

Color plate: CMY mixed color effect + 15 colors, rich colors

Pattern plate: 19 fixed patterns + white circle, with pattern jitter and pattern arbitrary positioning function.

Glass pattern plate; 8 glass patterns + white light

Atomization: an independent soft light sheet

Prism plate: Prism 1: 4 rows of mirrors, can be rotated and superimposed in both directions

Prism 2: 8 prisms, bidirectional rotation and superposition 2 prism disks can be superimposed to use indexing function and 16Bit precise fine-tuning

Focusing: Adopting high-precision glass optical lens system, electronic linear 0%-100% adjustment

Magnification: Adopting high-precision electronic linear infinite magnification 0%-100% adjustment

Software

Display interface: Adopting LCD liquid crystal display in Chinese and English, beautiful, simple and easy to use

(optional) Built-in nickel-metal hydride battery can control the system normally when power is off

Cooling system: Adopting gyroscope intelligent speed control cold high-speed silent fan cooling fan,

Control channels: 32 channels

Control and communication

Lighting connection: 3-pin signal line input and output and the first fast plug-in DMX signal interface, power input

Working environment

Maximum ambient temperature: 45°C

Minimum working temperature: -20°C

Maximum surface temperature: 70°C

Protection level: IP55

Horizontal/vertical:

Horizontal/vertical: horizontal scanning angle 540°, vertical scanning angle 270°

The speed of horizontal/vertical movement can be adjusted, and horizontal/vertical correction is automatically completed. Magnetic encoding positioning function is convenient for initial position correction and maintenance. Vertical locking function to prevent damage to the lamp during transportation, low noise/high torque, stable operation.

Extremely fast response: X-axis horizontal scanning speed 2.2 seconds, Y-axis horizontal scanning speed 1.0 second.

Installation

Can be installed horizontally or vertically

Can be installed in common operating positions

Factory configuration

Warranty card Signal line Safety rope

Manual

Power cord

Standard 2 quick locks

Certification

CE certification

UKCA certification

CETLus certification

2. Advantages of moving spot light

Moving spot light is one of the professional lighting equipment commonly used in performances, art stages and large and small events. With the ability to project sharp light, adjust the angle of light and move flexibly, moving spot light brings impressive lighting effects and contributes to improving the quality of the performance.

Create precise highlights on stage

Unlike wash lights that create diffuse light, moving spot lights produce a beam of light with a clear outline, focused on a specific area. Thanks to that, this device is used to shine a spotlight on the main character, the performance object or special parts of the stage, helping to increase attraction and prominence.

Flexible movement, diverse effects

With an automatic rotating head design (moving head), the moving spot light can rotate horizontally and vertically, easily changing the direction of the light and creating smooth moving light effects. Combined with gobo wheels to create shapes and color wheels, the light can create hundreds of different lighting effects such as: swirls, patterns, flashes... extremely vivid for event lighting programs.

Flexible application in many types of events

Thanks to its strong, clear lighting ability and easy control via DMX console, moving spot lights are widely used in many programs:

Music performance, music and dance stage

Product launch event, opening ceremony

Conference and seminar program

Fashion show, art performance

Outdoor events, mobile stages

High performance, stable durability

Moving spot lights are often manufactured with advanced LED or discharge technology, allowing for long-term durability. The device can withstand harsh working environments, while saving more energy than many traditional stage lights.
