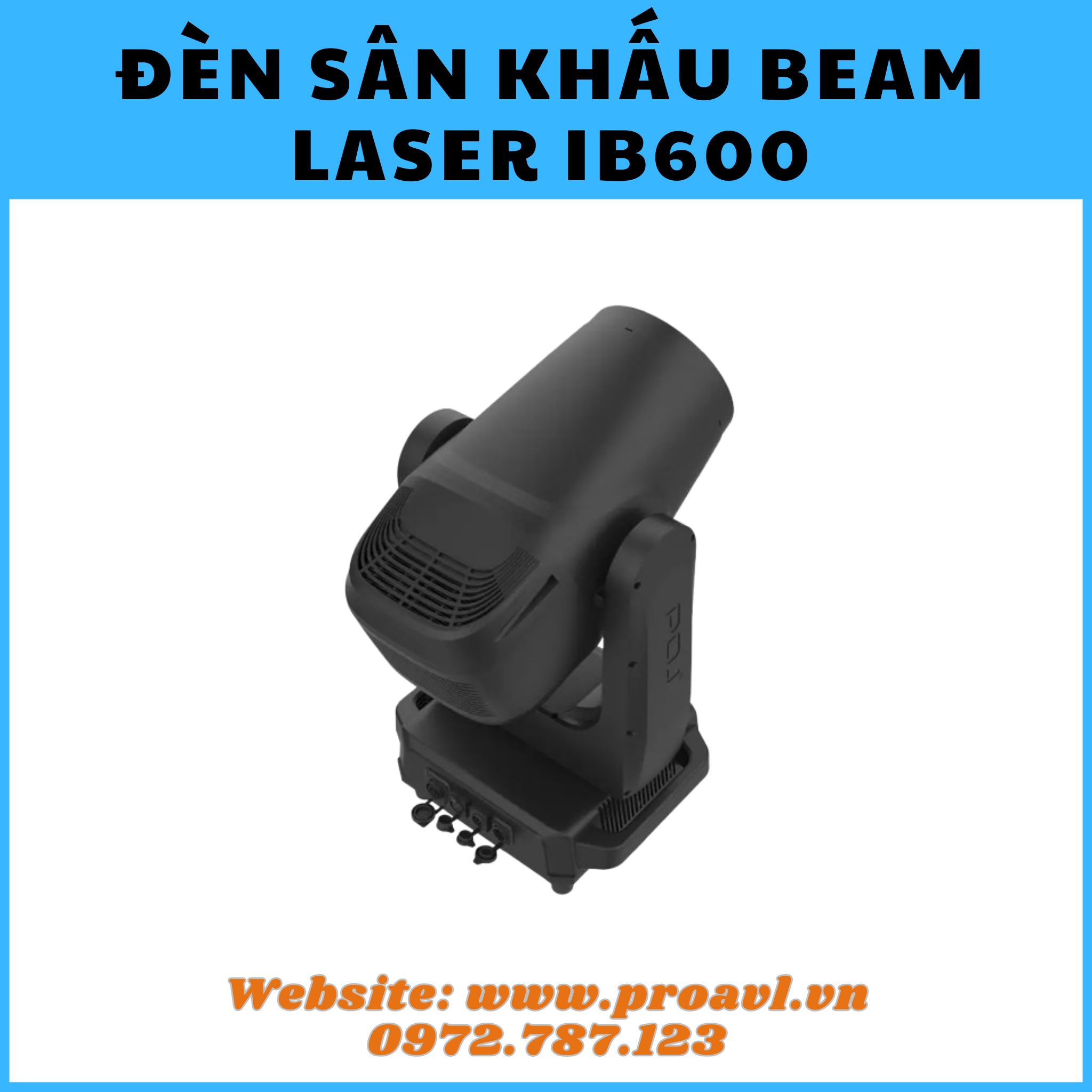

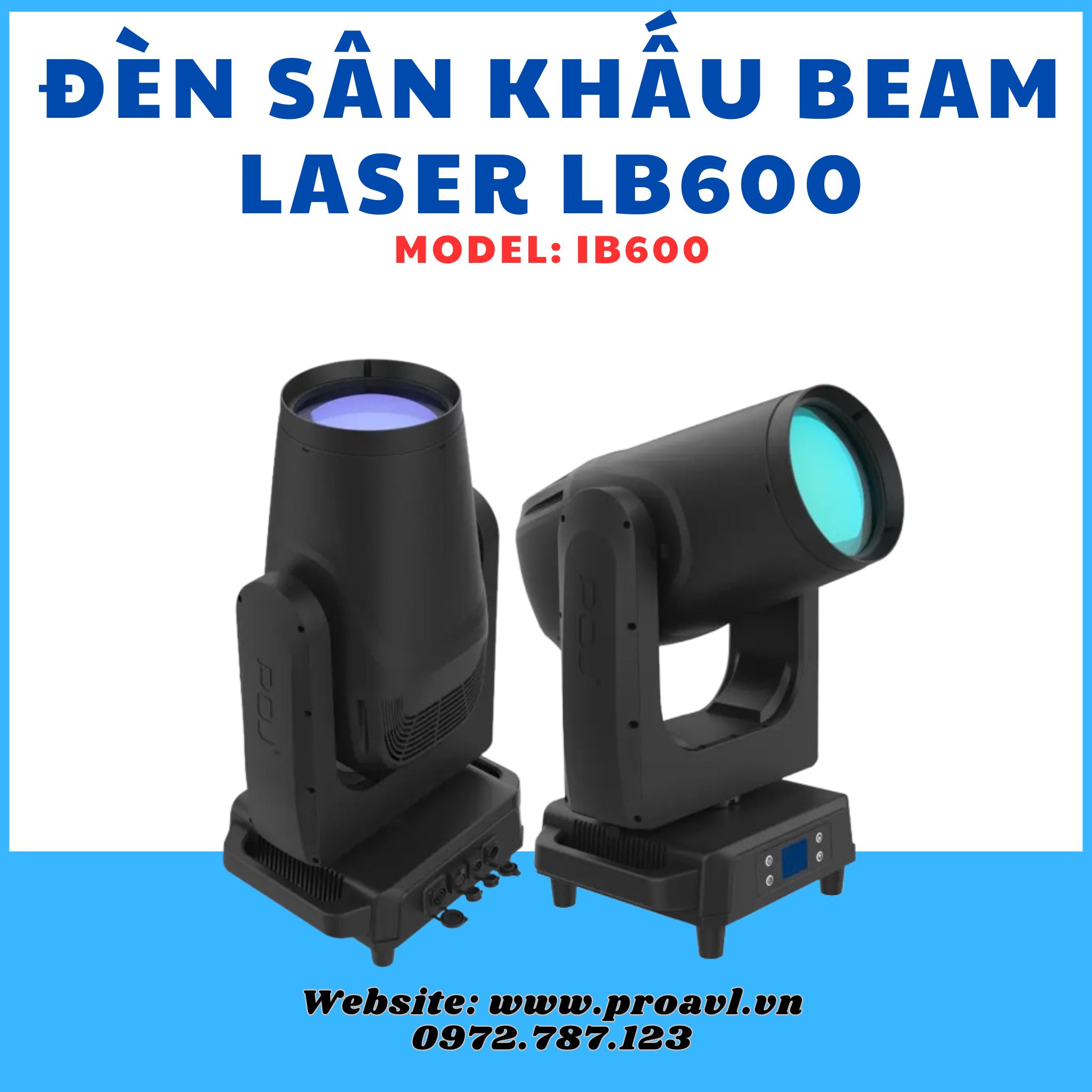

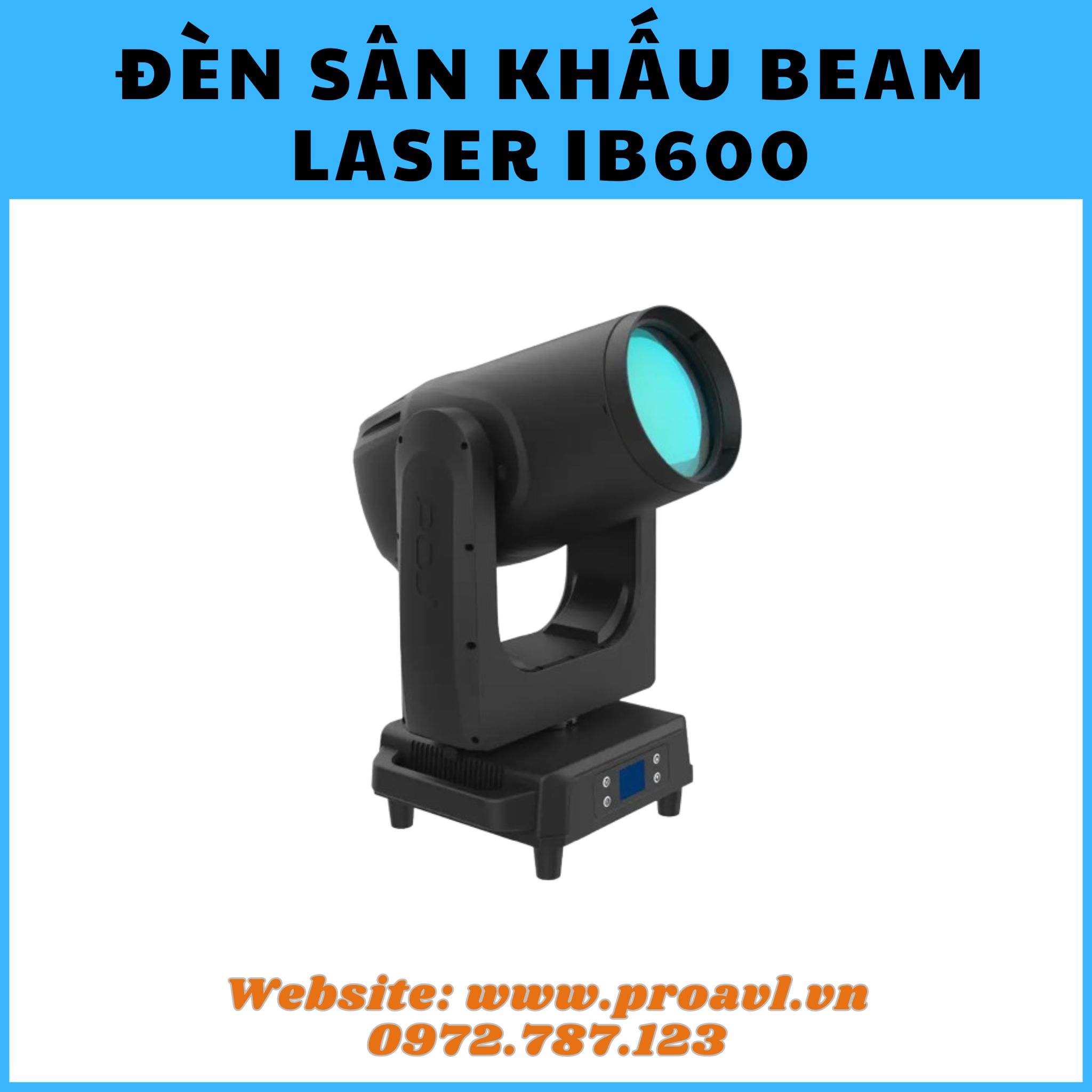

Beam Stage Light IB600

1. Technical specifications of Beam IB600 light

Voltage: AC100V-240V, 50/60Hz

Total power: 650 W

Light source: OSRAM 420W

Bulb life: 2000 H

Color temperature: 7800 K

Light angle: 1.8°

Strobe: high-speed strobe, double-side strobe, multiple speed strobe effects

Effect wheel: atomization + colorful (combined by 6 color filters)

Color wheel: 18 color filters + white light, any half-color effect, rainbow effect with bidirectional rotation.

CMY color mixing system: CMY infinite color mixing

Gobo wheel: 17 gobo pieces + white circle, with pattern jitter and pattern arbitrary positioning function.

Prism wheel:

Prism 1: 8 prisms, bidirectional rotation and superposition

Prism 2: 8+16+24 prisms, bidirectional rotation and superposition 2 prism disks can be superimposed to use index function and 16Bit precise fine-tuning.

Focusing: High-precision glass optical lens system, electronic linear 0%-100% adjustment

Communication design: DMX three-core transmission and direct signal interface

Horizontal/vertical: horizontal scanning angle 540°, vertical scanning angle 270°, horizontal/vertical movement speed can be adjusted, magnetic encoding automatic error correction, horizontal/vertical positioning function, low noise/large torque, stable operation, extremely fast response: X-axis horizontal scanning speed 2.2 seconds, Y-axis horizontal scanning speed 1.5 seconds.

Display interface: LCD liquid crystal display in Chinese and English, beautiful, simple and easy to use. (Optional) Built-in nickel-hydrogen battery can control the system normally when power is off

Cooling system: Copper tube fin radiator + silent fan cooling, intelligent control of fan speed

Control channels: 22 channels

Protection level: IP66

Hanging lamp hook: Folding lamp hook

Lighting connection: 3-pin waterproof signal line input and output and quick plug-in waterproof power plug input and output

Product size: 380*288*695mm

2. Application of Beam IB600 lights on stage

In modern performances, lighting plays an equally important role as sound or stage content. One of the prominent lighting devices today is the beam light - a tool that helps create unique lighting effects, enhancing the aesthetics and emotions of the audience. Let's learn about the application of beam lights on stage and why this device is so popular.

Creates a strong, sharp beam of light

Unlike many conventional stage lights, beam lights produce high-intensity, narrow-diameter, focused and clear light beams. This helps create outstanding and powerful lighting effects, attracting the attention of the audience from every angle. Especially when combined with stage smoke, the light from the stage beam lights becomes prominent and highly expressive.

Flexible motion effects

Beam lights are designed with the ability to move in many directions: rotate horizontally, vertically, pan quickly and slowly to the beat of the music. Thanks to that, the lighting controller can easily create lighting shows that are synchronized with the program content. This is the factor that creates excitement, drama and professionalism for modern performance stages.

Variety of colors and projection types

Many current stage beam lights are equipped with automatic color changing features, adding gobo effects (light graphics), prism effects, or zooming the beam angle to help change the light flexibly. Thanks to that, with just one device, you can create dozens of different lighting styles, suitable for each performance scene or type of event.

Applications in many types of stages

Beam lights are widely used in music performances, fashion events, festivals, conferences, weddings and outdoor stages. Thanks to their long-range projection and precise orientation, stage beam lights are ideal for creating lighting accents in large spaces that require a high level of professionalism.

SEE MORE OTHER SERVICES AT HSV ProAVL

3. Contact HSV ProAVL - authorized distributor of POJ Lighting lamps

HSV ProAVL is proud to be the official distributor of POJ Lighting in Vietnam - a famous stage lighting brand with high durability, outstanding lighting performance and modern design. At HSV ProAVL , we provide genuine POJ Lighting lines , including: moving head lights, beam lights, parled lights, wash lights, follow lights... suitable for all types of stages - from small events, tea rooms, halls to large-scale professional stages.

We not only sell genuine stage lights but also provide POJ Lighting rental services for each program and event - cost-saving, easy to deploy. HSV ProAVL 's technical team supports installation, operation and lighting programming as required.

With many years of experience in the stage equipment industry, HSV ProAVL is committed to providing quality lighting equipment, good prices, and professional services. All POJ Lighting products at HSV ProAVL have clear origins and full warranties.

Contact HSV ProAVL for advice and quotes on genuine POJ Lighting lights that are most suitable for your stage.
