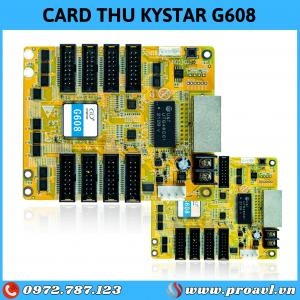

Kystar G608 Receiving Card

HSV ProAVL is a unit specializing in providing G608 capture cards of the famous Kystar brand with Good Price - Prestige. The products we provide to the market are all products guaranteed in terms of quality as well as warranty policies. If you have a need to buy Kystar G608 capture card , please contact us immediately via Hotline : 0972.787.123 for advice and detailed quotes on the product!

1. Kystar G608 screen capture card

Kystar series G608 LED screen receiving card is an important part of the main control system of LED screen, receive data from the transmission card and decode the data. Convert into Module control signal, used with the transmission card to form the main control system of LED large screen .

SEE MORE PRODUCTS AND SERVICES OF HSV ProAVL

2. Features and specifications of Kystar G608 capture card

• 8 HUB interface, 16 groups data : G608 receiver card is integrated with 8 HUB - 75E interfaces, supporting 16 groups of RGB data.
• Stable hardware structure: G608 Kystar receiving card includes high quality components, supports power protection, upgrade protection to ensure high hardware quality.
• Color rendering technology: G608 capture card supports KYSTAR technology to solve the difficult problem of inaccurate color rendering on LED screens.
• Arbitrary frequency multiplication technology: The G608 receiver card supports arbitrary frequency multiplication technology. In addition, the receiver card can also adjust the frequency multiplication to match the working frequency of the camera and effectively eliminate scanning lines.
• Grayscale accuracy: Kystar G608 capture card has precise grayscale control, which can realize the effect of low brightness and high grayscale.
• Pixel by Pixel Correction: G608 Kystar capture card supports point-by-point correction technology. In particular, it can correct the brightness and color difference between each pixel.
• Easy Recovery: Kystar G608 receiver card supports easy recovery functions. If a receiver card in the display system is damaged, the display system can be easily recovered by replacing the receiver card and pressing the resend button on the software.

3. Technical specifications of G608 Kystar receiver card

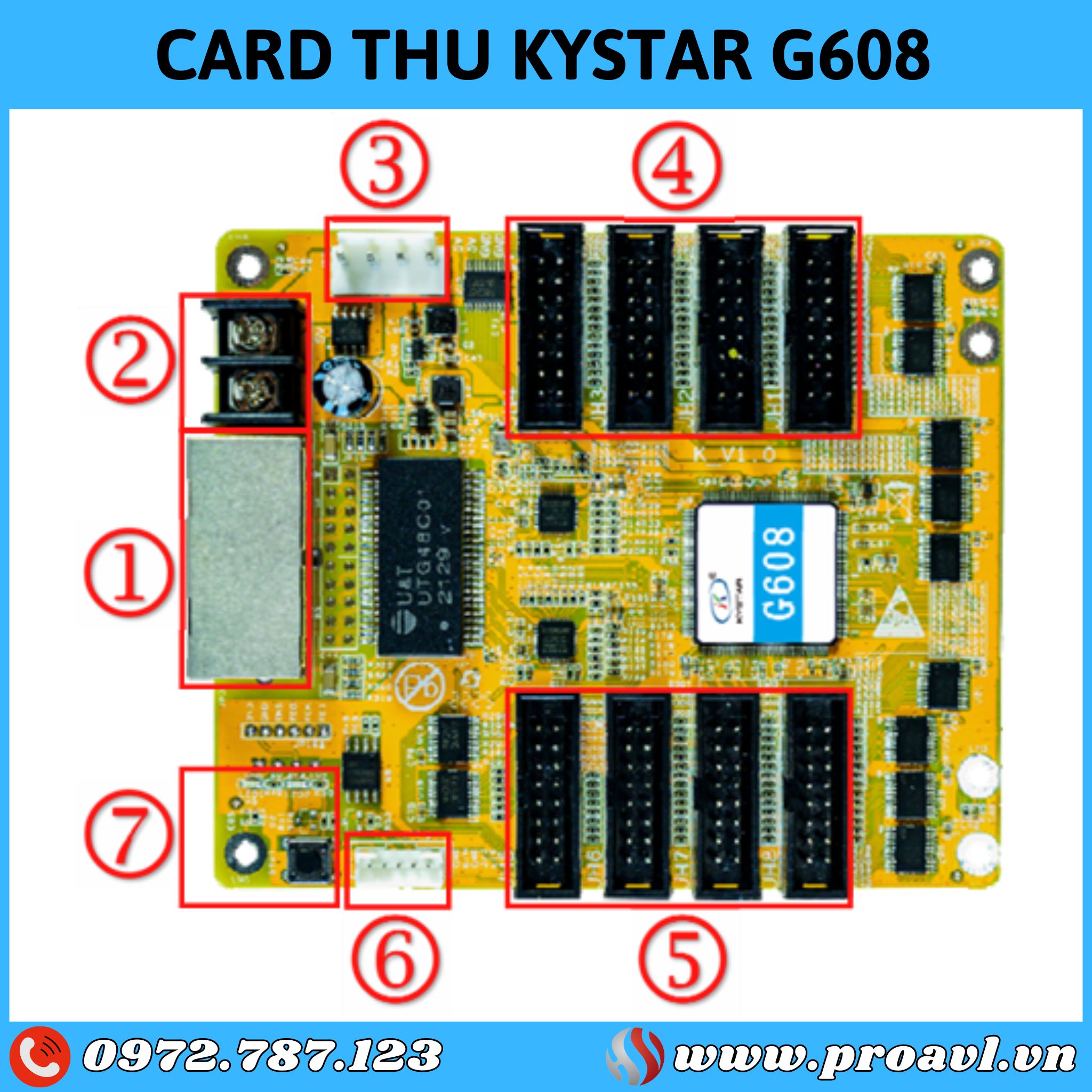

3.1. Description of the G608 Kystar receiver card control panel

• Number 1: Two Gigabit Ethernet ports, indistinguishable between input and output.
• Number 2: Terminal block available with 5V, 5V and GND voltage
• No. 3: 4 Pin Wire Connectors Available with 5V, 5V and GND Voltage
• No. 4: 16P cable port, JP1 to JP6 (Right to Left).
• No. 5: P5, connect LCD color screen to display card receiving status.
• No. 6: LED signal status indicator, test button

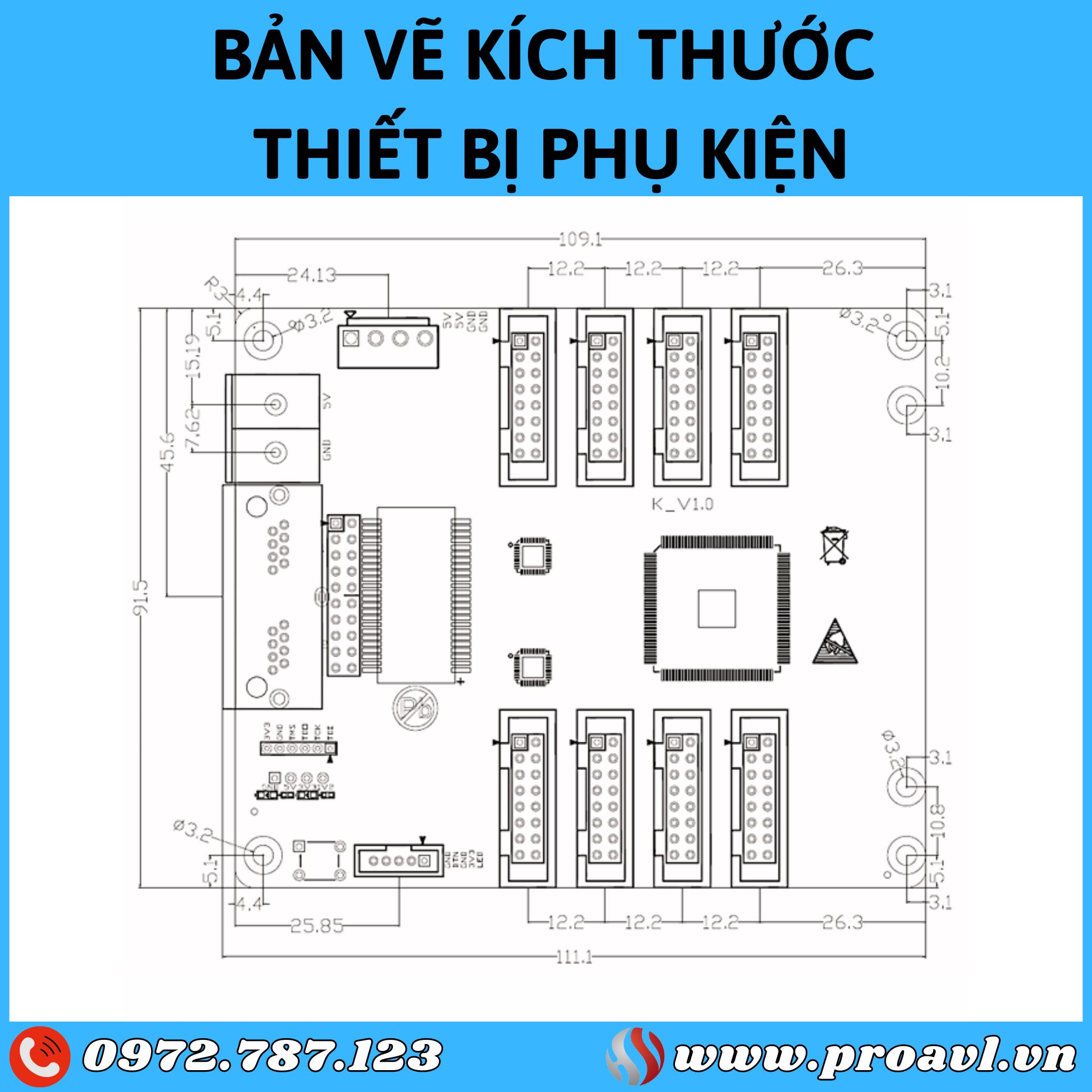

3.2. G608 Kystar Receiver Card Port Specifications

3.2. Technical specifications of G608 Kystar receiver card

4. Why choose LED screen components from HSV ProAVL?

Why should customers use the service and buy LED screen components at HSV ProAVL ? Below are some of the benefits that customers will receive. Including:

• Genuine products: Products have clear documents and origin, imported from the genuine and famous Kystar brand on the market today.
• Product diversity: In addition to providing LED display cards, HSV ProAVL also supplies other components such as: Moules, Power supplies, Control cards, aluminum frames,... and some other accessories.
• Professional technical team: Enthusiastic support throughout the service process, experienced staff, responsible work.
• Competitive prices in the market: HSV ProAVL always offers competitive prices and many preferential policies for customers when using our services.
• Warranty and maintenance policy: Always ensure full product warranty policies before and after using the service.

5. Reputable supplier of Kystar G608 capture card

If you want to buy genuine Kystar G608 receiver card , please contact the information below for the fastest advice and quote!
