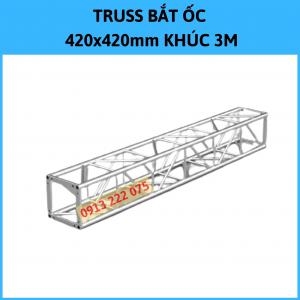

Aluminum Truss Frame 420X420mm Section 3M

Specifications of aluminum Truss frame 400x600mm with screws VS4242B_3M

• Application: Stage truss, event canvas, truss truss hanging stage lights
• Alloy Material: Aluminum Alloy 6061-T6/6082-T6
• Connection type: Truss with screws (bolts) 8 holes large crossbar 50mm
• Module length: 3000mm (3m) or made to order
• Structure: 420*420mm 4D box or make to order
• Maximum aperture: Extended maximum aperture 16m (16000mm)
• Box form: 4-sided square 4D box
• Main aluminum tube: φ50*3mm - 50mm diameter tube. Thickness 3mm
• Horizontal pipe: φ25*2mm - Pipe diameter 25mm. Thickness 2mm
• Diagonal tube: φ25*2mm - Pipe diameter 25mm. Thickness 2mm
• Color: Silver-white natural aluminum alloy color. Or paint on request
• Weight: 25.02kg / (3m module)
