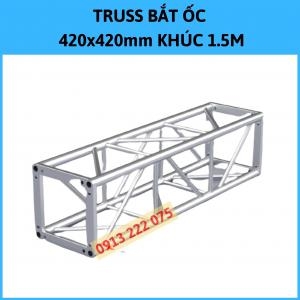

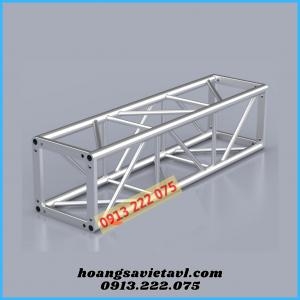

Aluminum Truss Frame 420X420mm Section 1.5M

Aluminum Truss Frame 420X420mm Section 1.5M

Price: Contact

Code: DA4242BP45_1.5

Status: Stocking

  • Unit price/piece
  • Model: Aluminum Truss 420x420mm
  • Made in Viet Nam
  • Dimensions: 1500x420x420mm
  • Weight: 13.87 kg
  • Connection type: 8 hole screw
  • Warranty: 5 years
    Top Selling Products

Specifications 420x420mm aluminum Truss frame with screws VS4242B_1.5M

  • Application: Stage truss, event canvas, truss truss hanging stage lights
  • Alloy Material: Aluminum Alloy 6061-T6/6082-T
  • Connection type: Truss with screws (bolts) 8 holes large crossbar 50mm
  • Module length: 1500mm (1.5m) or made to order
  • Structure: 420*420mm 4D box or make to order
  • Maximum aperture: Extended maximum aperture 16m (16000mm)
  • Box form: 4-sided square 4D box
  • Main aluminum tube: φ50*3mm - 50mm diameter tube. Thickness 3mm
  • Horizontal pipe: φ25*2mm - Pipe diameter 25mm. Thickness 2mm
  • Diagonal tube: φ25*2mm - Pipe diameter 25mm. Thickness 2mm
  • Color: Silver-white natural aluminum alloy color. Or paint on request
  • Weight: 13.87kg/ (module 1.5m)
