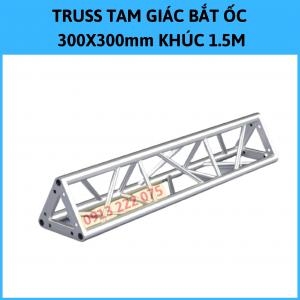

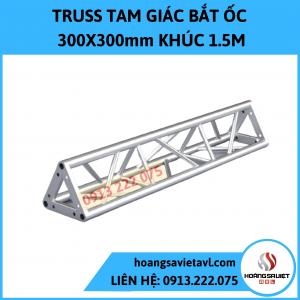

Truss Triangle 300X300mm Section 1.5M

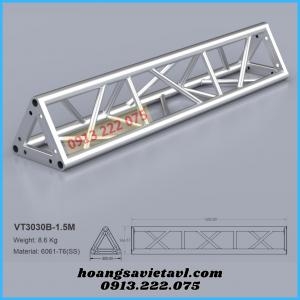

Specifications Triangle Aluminum Truss Frame VT3030B_1.5M

• Application: Stage truss, event canvas, truss truss hanging stage lights
• Alloy Material: Aluminum Alloy 6061-T6/6082-T6
• Connection type: 8 hole screw (bolt)
• Module length: 1500mm (1.5m) or made to order
• Structure: 300mm*300mm 3D box or made to order
• Maximum aperture: Extended maximum aperture 10m (10000mm) straight
• Box form: 3-sided square 3D box (triangle)
• Main aluminum tube: φ50*3mm - 50mm diameter tube. Thickness 3mm
• Horizontal pipe: φ25*2mm - Pipe diameter 25mm. Thickness 2mm
• Diagonal tube: φ25*2mm - Pipe diameter 25mm. Thickness 2mm
• Color: Silver-white natural aluminum alloy color. Or paint on request
• Weight: 8.6 kg/ (module 1.5m)
