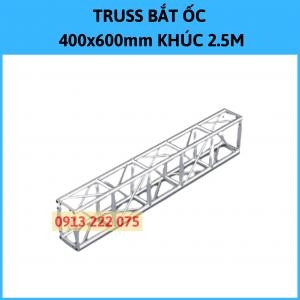

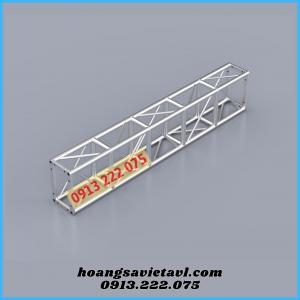

Aluminum Truss Frame 400X600mm Section 2.5M

Specifications Aluminum Truss frame 400x600mm with screws VS4060BP_2.5M

• Application: Stage truss, event canvas, truss truss hanging stage lights
• Alloy Material: Aluminum Alloy 6061-T6/6082-T
• Connection type: Truss with screws (bolts) 8 holes large crossbar 50mm
• Module length: 2500mm (2.5m) or made to order
• Structure: 4D box 400mm*600mm or made to order
• Maximum aperture: Extended maximum aperture 30m (30000mm)
• Box form: 4-sided square 4D box
• Main aluminum tube: φ50*3mm - 50mm diameter tube. Thickness 3mm
• Horizontal pipe: φ50*2mm - 50mm diameter pipe. Thickness 2mm
• Diagonal tube: φ25*2mm - Pipe diameter 25mm. Thickness 2mm
• Color: Silver-white natural aluminum alloy color. Or paint on request
• Weight: 26.35kg / (module 2.5m)
