- Home page PRODUCT TRUSS FRAME WITH SCREWS Aluminum Truss Frame with Screws 400x400mm

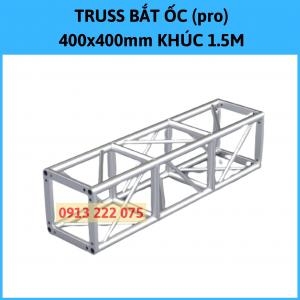

Aluminum Truss Frame with Screws 400x400mm
Aluminum Truss Frame 400X400mm Pro Section 1.5M
Price: Contact
Code: DA4040BP45_1.5
Status: Stocking
- Unit price/piece
- Model: Aluminum Truss Bolts 400x400mm Pro
- Made in Viet Nam
- Dimensions: 1500x400x400mm
- Weight: 15.78 kg
- Connection type: 8 hole screw
- Warranty: 5 years
Top Selling Products

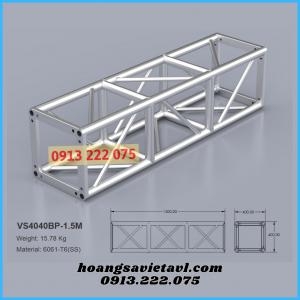

Specifications of aluminum Truss frame 400x400mm with screws VS4040BP_1.5M
- Application: Stage truss, event canvas, truss truss hanging stage lights
- Alloy Material: Aluminum Alloy 6061-T6/6082-T
- Connection type: Truss with screws (bolts) 8 holes large crossbar 50mm
- Module length: 1500mm (1.5m) or made to order
- Structure: 4D box 400mm*400mm or make to order
- Maximum aperture: Extended maximum aperture 16m (16000mm)
- Box form: 4-sided square 4D box
- Main aluminum tube: φ50*3mm - 50mm diameter tube. Thickness 3mm
- Horizontal pipe: φ50*2mm - 50mm diameter pipe. Thickness 2mm
- Diagonal tube: φ25*2mm - Pipe diameter 25mm. Thickness 2mm
- Color: Silver-white natural aluminum alloy color. Or paint on request
- Weight: 15.78kg/ (module 1.5m)
