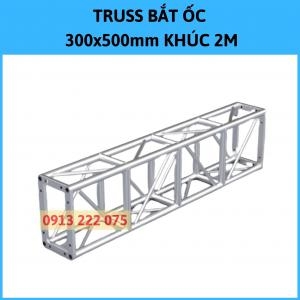

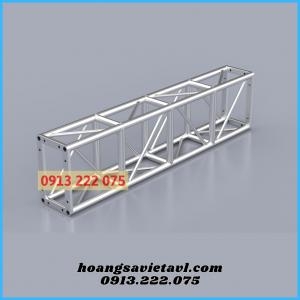

300X500mm Aluminum Truss Frame 2M . Section

Specifications of aluminum Truss frame 300x500mm with screws VS3050BP_2M

• Application: Stage truss, event canvas, truss truss hanging stage lights
• Alloy Material: Aluminum Alloy 6061-T6/6082-T
• Connection type: Truss with screws (bolts) 8 holes large crossbar 50mm
• Module length: 2000mm (2m) or made to order
• Structure: 4D box 300mm*500mm or made to order
• Maximum aperture: Extended maximum aperture 25m (25000mm)
• Box form: 4-sided square 4D box
• Main aluminum tube: φ50*3mm - 50mm diameter tube. Thickness 3mm
• Horizontal pipe: φ50*2mm - 50mm diameter pipe. Thickness 2mm
• Diagonal tube: φ25*2mm - Pipe diameter 25mm. Thickness 2mm
• Color: Silver-white natural aluminum alloy color. Or paint on request
• Weight: 19.16 kg / (2m module)
