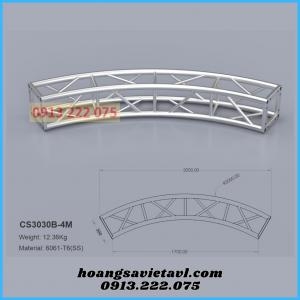

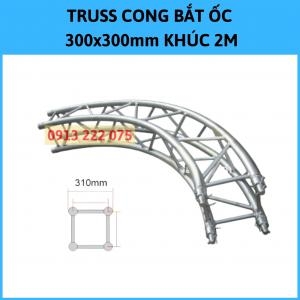

300X300mm Curved Aluminum Truss Frame 2M

Specifications Curved Aluminum Truss Frame 300x300mm VC3030B_R2D4

• Application: Stage truss, event canvas, truss truss hanging stage lights
• Alloy Material: Aluminum Alloy 6061-T6/6082-T6
• Connection type: 8 hole screw (bolt) Truss
• Module length: 2000mm (2.0m) or made to order
• Structure: 300*300mm 4D box or made to order

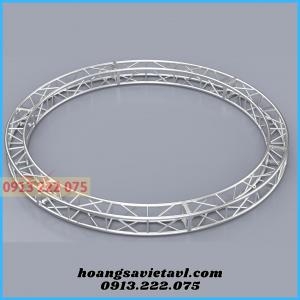

• Maximum aperture: 4m diameter circle (R=2m)
• Box form: 4-sided square 4D box
• Main aluminum tube: φ50*3mm - 50mm diameter tube. Thickness 3mm
• Horizontal pipe: φ25*2mm - Pipe diameter 25mm. Thickness 2mm
• Diagonal tube: φ25*2mm - Pipe diameter 25mm. Thickness 2mm
• Color: Silver-white natural aluminum alloy color. Or paint on request
• Weight: 15.05kg/ (module 2.0m)
