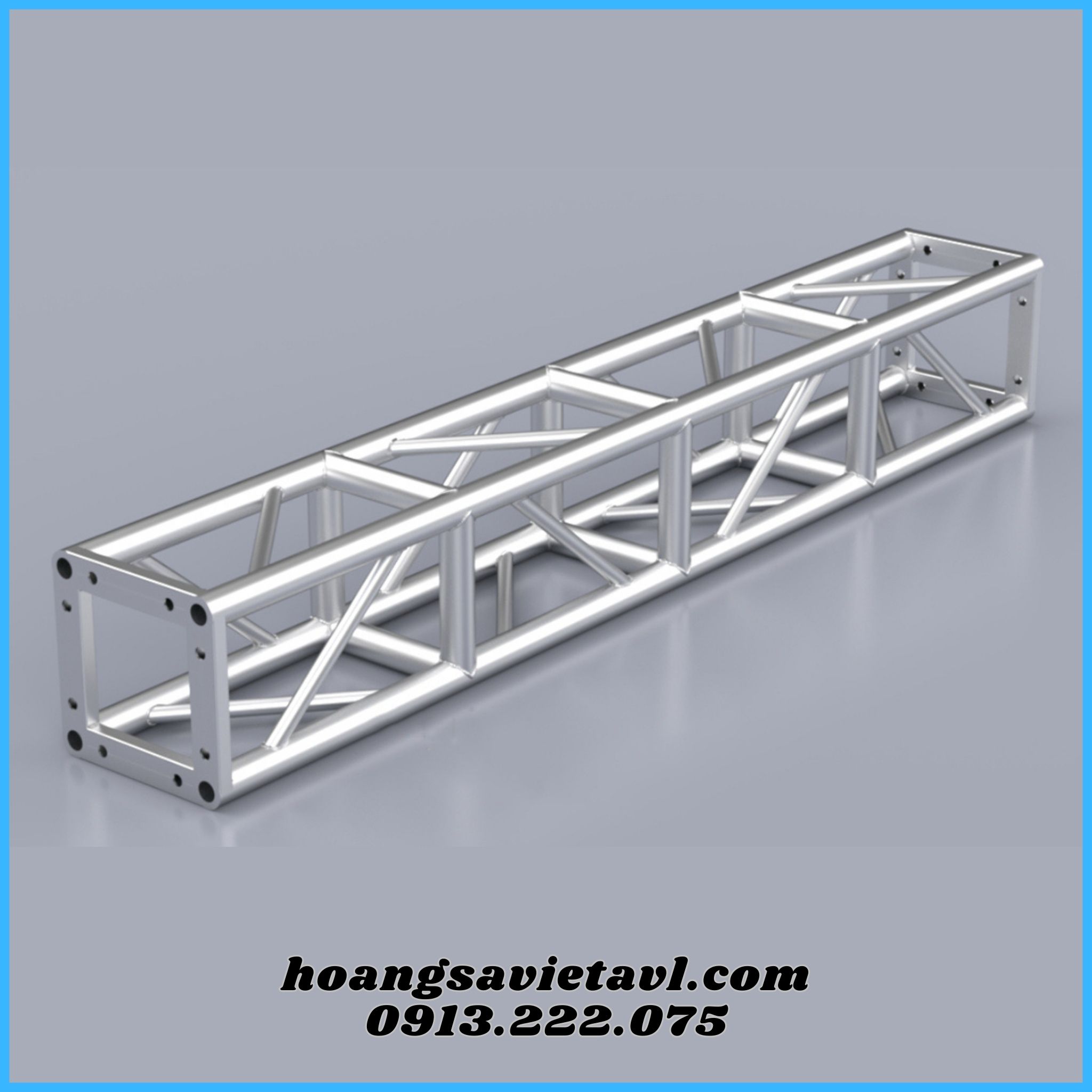

Aluminum Truss Frame 300X300mm Pro Segment 2M

Specifications Aluminum Truss frame 300x300mm Pro screwing VS3030BP_2M

- Application: Stage truss, event canvas, truss truss hanging stage lights

- Alloy material: Aluminum Alloy 6061-T6/6082-T6

- Connection type: Truss to catch screws (bolts) 8 large horizontal cross holes 50mm

- Module length: 2000mm (2.0m) or made to order

- Structure: 300*300mm 4D box or made to order

- Maximum aperture: Extended maximum aperture 13m (13000mm)

- Box form: 4-sided square 4D box

- Main aluminum tube: φ50*3mm - 50mm diameter pipe. Thickness 3mm

- Horizontal pipe: φ50*2mm - Pipe diameter 50mm. Thickness 2mm

- Diagonal tube: φ25*2mm - Diameter 25mm. Thickness 2mm

- Color: Silver-white natural aluminum alloy color. Or paint on request

- Weight: 17.21kg / (module 2.0m)
