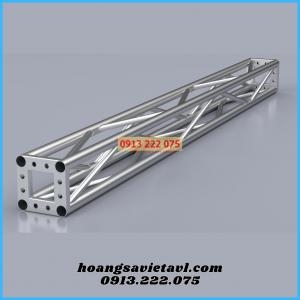

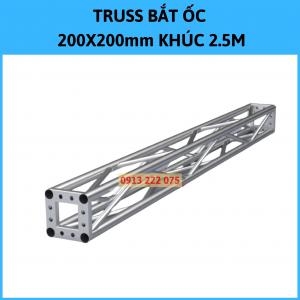

Aluminum Truss Frame 200X200mm Section 2.5M

Specifications aluminum truss frame 200x200mm screwed VS2020B_2.5M

- Application: Stage truss, event canvas, truss truss hanging stage lights

- Alloy material: Aluminum Alloy 6061-T6/6082-T6

- Connection type: 8-hole screw (bolt) Truss

- Module length: 2500mm (2.5m) or made to order

- Structure: 4D box 200*200mm or make to order

- Maximum aperture: Extended maximum aperture 8m (8000mm) straight

- Box form: 4-sided square 4D box

- Main aluminum tube: φ43*2.5mm - Pipe diameter 43mm. Thickness 2.5mm

- Horizontal pipe: φ25*2mm - Pipe diameter 25mm. Thickness 2mm

- Diagonal tube: φ50*3mm - Diameter 25mm. Thickness 2mm

- Color: Silver-white natural aluminum alloy color. Or paint on request

- Weight: 11.64kg / (2.5m module)
